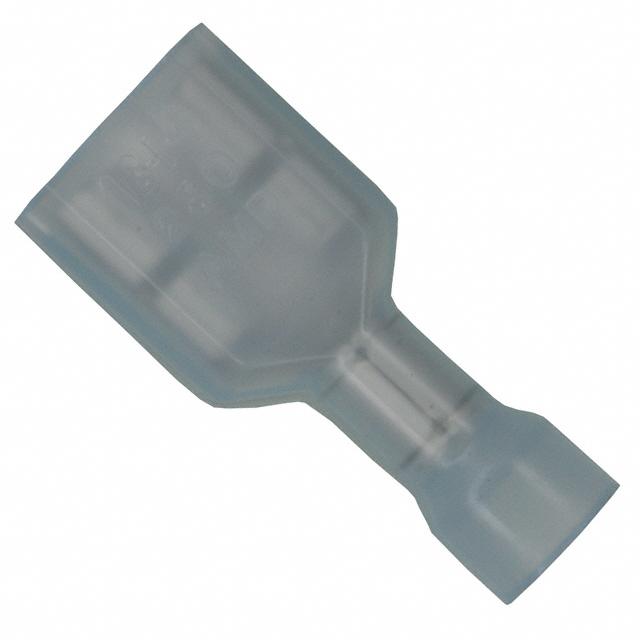

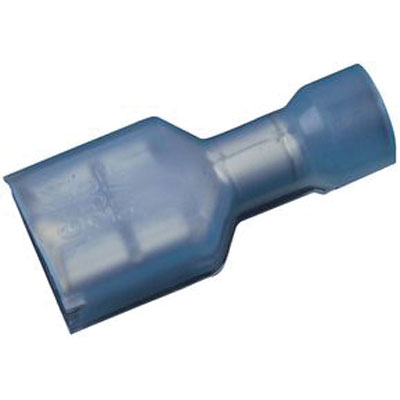

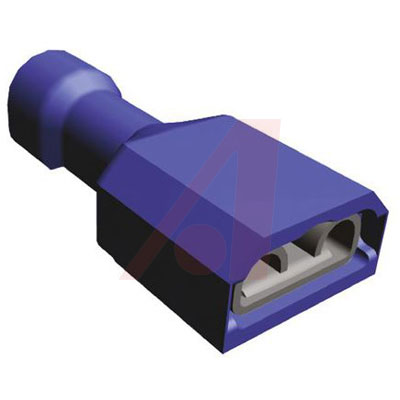

AMP FROM TE CONNECTIVITY 3-350819-2. 连接器
Each die assembly consists of an upper die crimper and a lower die anvil, a die retention screw on upper die, and a hex wrench for securing the socket.
得捷:
CONN QC RCPT 14-16AWG 0.250
立创商城:
3-350819-2 非整盘发货是100一截
贸泽:
Terminals .250 FASTON Reel of 2200
e络盟:
连接器
Allied Electronics:
CONNECTOR; RECEPTACLE; ULTRAFAST PLUS 250; 16-14 AWG
Jameco:
Quick Disconnect Terminal 14-16 AWG F 21.71 10.38mm
安富利:
Quick Disconnect Terminal 14-16AWG F 21.71mm 10.38mm Tin Strip on Reel
Chip1Stop:
Quick Disconnect Terminal 14-16AWG Brass Blue Translucent F 21.71mm Tin Reel Automotive
Verical:
Quick Disconnect Terminal 14-16AWG Brass Blue Translucent RCP 21.71mm Tin Reel/Strip Automotive
Newark:
# AMP - TE CONNECTIVITY 3-350819-2 Quick Disconnect Terminal, Ultra-Fast FASTON Series, 16 AWG, 14 AWG, 2.08 mm²
MASTER:
Quick Disconnect Terminal - Ultra-Fast FASTON Series - Female Quick Disconnect - 6.35mm x 0.81mm.
Powell:
Ultra-Fast Receptacles & Tabs
ICbanQ:
CONN RECEPT FAST 14-16 AWG .250
GOPHER:
Quick Connect Terminal 16-14AWG .250 FEMALE FULL NYLON STRIP FORM
Electro Sonic:
Quick Disconnect Terminal - Ultra-Fast FASTON Series - Female Quick Disconnect - 6.35mm x 0.81mm.
极性 Female
线规 14AWG ~ 16AWG
触点电镀 Tin
方向 Straight
易燃性等级 UL 94 V-2
额定电压 600 V
安装方式 Quick Connect
封装 -
长度 21.72 mm
宽度 10.39 mm
封装 -
颜色 Blue
触点材质 Brass
材质 Brass
绝缘材质 Nylon
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Industrial, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8536904000
