3240046概述

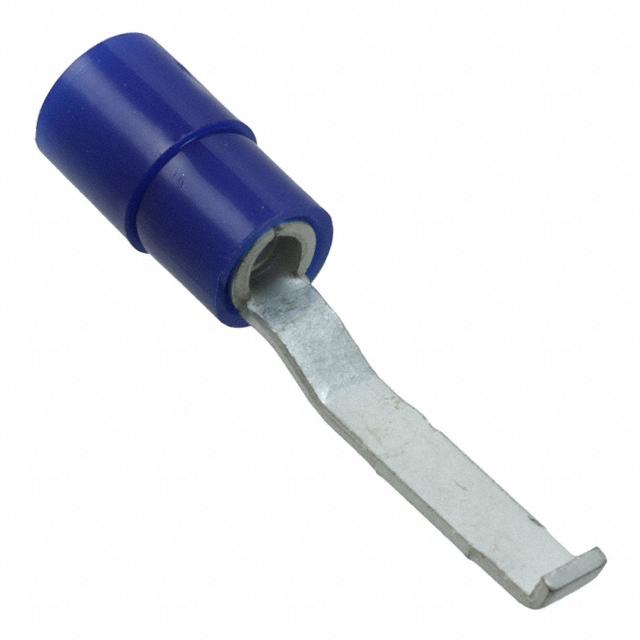

Pin terminal Planar version, hook-shaped 1.5mm² 2.5mm² Partially insulated Blue Phoenix Contact 3240046 100 pcs

Lug Terminal 28.5mm 2.8mm


得捷:
CONN KNIFE TERM 14-16 AWG BLUE


艾睿:
The lug terminal 3240046 wire terminal from Phoenix Contact works by making a solid shielded connection between two of your terminals. This product is 28.5 mm long and 2.8 mm. This wire terminal has an operating temperature of -20 to 105 °C.


Allied Electronics:
Flat pin cable lug; blue; 1.5-2.5mm


Verical:
Lug Terminal Copper Blue 28.5mm


MASTER:
Flat pin cable lug - with tab - soldered neck - blue - 1.5 ... 2.5 mm² - pin width: 2.8 mm - easy conductor entry with Easy-Entry - for horizontal and vertical crimping with CRIMPFOX-RCI 6


Online Components:
Lug Terminal Copper Blue 28.5mm


Electro Sonic:
Flat pin cable lug - with tab - soldered neck - blue - 1.5 ... 2.5 mm² - pin width: ...


3240046中文资料参数规格
技术参数

触点数 1

线规 14AWG ~ 16AWG

工作温度Max 105 ℃

工作温度Min -20 ℃

外形尺寸

长度 28.5 mm

物理参数

颜色 Blue

触点材质 Copper

材质 Copper

工作温度 -20℃ ~ 105℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536694050

数据手册

在线购买3240046
型号: 3240046
描述:Pin terminal Planar version, hook-shaped 1.5mm² 2.5mm² Partially insulated Blue Phoenix Contact 3240046 100 pcs
