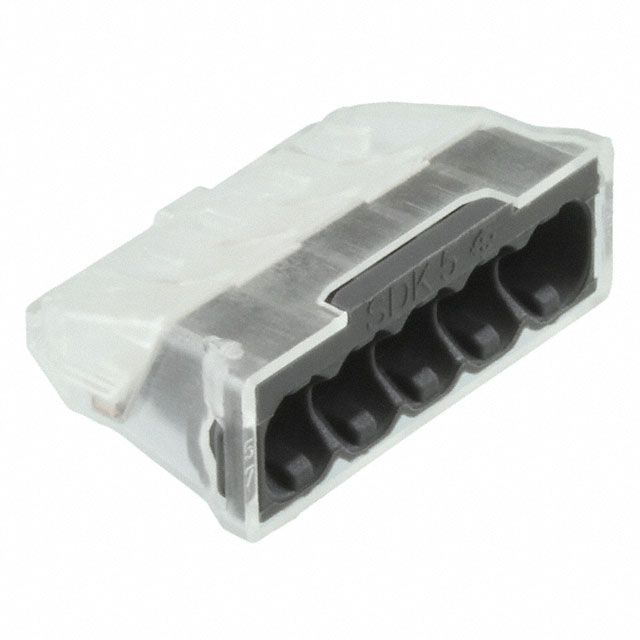

3240165图片5
3240165概述

Conn Terminal Block F 5POS 24A

5 针位端子块 插头,母插口 180° 自由悬挂


得捷:
TERM BLOCK PLUG 5POS STR


贸泽:
Fixed Terminal Blocks JBC 2,5/5


艾睿:
Conn Terminal Block F 5 POS 24A


MASTER:
5-pos. socket terminal block with spring-cage connection - for toolless wiring with push-in connection method - for one and multi-strand conductors with a cross section of 0.5 to 2.5 mm² - insulation housing transparent.


Online Components:
Conn Terminal Block F 5 POS 24A


Electro Sonic:
5-pos. socket terminal block with spring-cage connection - for toolless wiring with push-in connection method - for one and multi-strand ...


3240165中文资料参数规格
技术参数

触点数 5

线规 16AWG ~ 20AWG

额定电流 24 A

排数 1

电路数 5

易燃性等级 UL 94 V-2

针脚数 5

额定电流Max 24 A

工作温度Max 90 ℃

工作温度Min -40 ℃

额定电压Max 450 V

外形尺寸

长度 15.6 mm

高度 8.9 mm

物理参数

颜色 Clear

工作温度 -40℃ ~ 90℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536904000

数据手册

在线购买3240165
型号: 3240165
描述:Conn Terminal Block F 5POS 24A
