56 位置 焊接孔眼 3.56mm 排距 面板安装 间距 0.156" 3.96mm

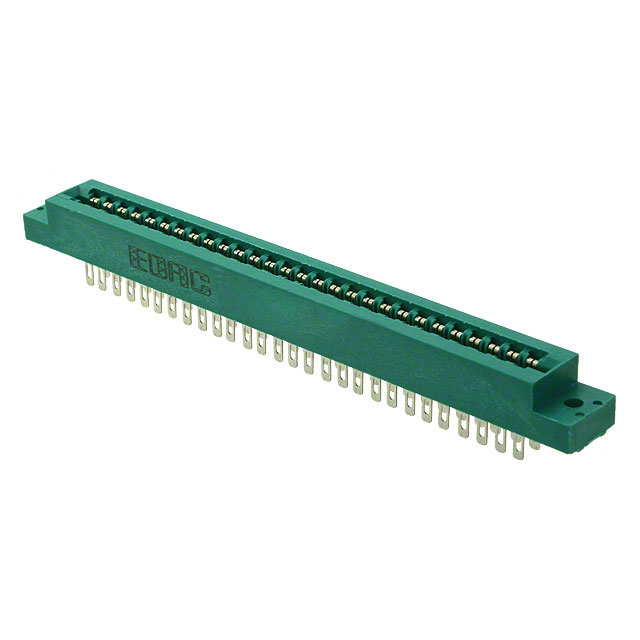

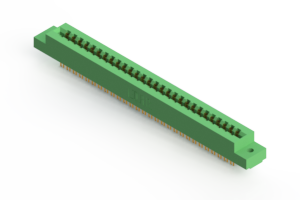

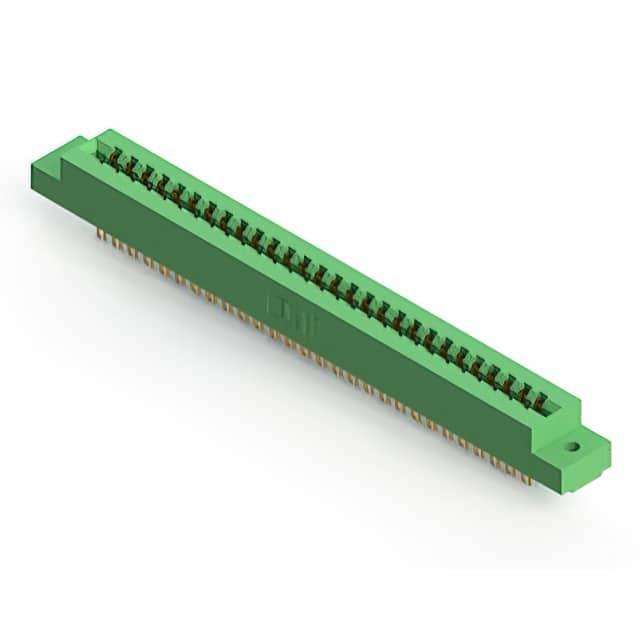

56 Position Female Connector Non Specified - Dual Edge Gold 0.156" 3.96mm Green
得捷:
CONN EDGE DUAL FMALE 56POS 0.156
立创商城:
305-056-500-202
Verical:
Conn Card Edge SKT 56 POS 3.96mm Solder Lug ST Panel Mount
Newark:
# EDAC 305-056-500-202 Connector, 305 Series, Card Edge, 56 Contacts, Receptacle, 3.96 mm, Solder
MASTER:
305 Series .156" 3.96mm contact spacing Card Edge Connector with 56 Wire Hole type contacts. The tails are .087" x .013" 2.21mm x 0.33mm thick and .282" 7.16mm long in a Double Row formation. The Insulator is Green in color with a .295" 7.49mm
Electro Sonic:
305 Series .156" 3.96mm contact spacing Card Edge Connector with 56 Wire Hole type contacts. The tails are .087" x ...
触点数 56
极性 Female
触点电镀 Gold
排数 2
易燃性等级 UL 94 V-0
针脚数 56
额定电流Max 5 A
接触电阻Max 10 mΩ
安装方式 Through Hole
封装 -
引脚间距 3.96 mm
长度 119 mm
宽度 12.7 mm
高度 12.7 mm
封装 -
引脚间距 3.96 mm
外壳颜色 Green
颜色 Green
触点材质 Copper Alloy
工作温度 -65℃ ~ 125℃
外壳材质 Plastic
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
