307-022-501-102

EDAC  307-022-501-102.  卡边连接器, 母, 22路

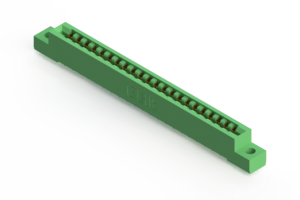

The is a 22-position 1-row Card Edge Connector with gold-plated copper alloy contacts and a green thermoplastic polyester insulator. It has wire-hole contact termination and 3.25mm diameter mounting holes. It accepts 0.062-inch 1.57mm nominal thickness PC board. It accepts between contact and in-contract polarizing keys.

.

5A Continuous current rating

.

10mR Maximum contact resistance

.

5000MR Minimum insulation resistance
