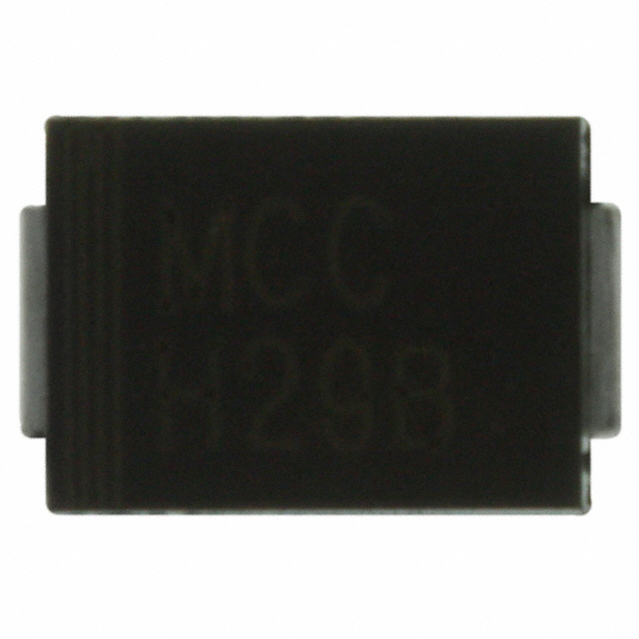

稳压二极管 3.0W 15V
This zener diode from is perfect for blocking a voltage. Its test current is 25 mA. Its maximum leakage current is 1 μA. Its maximum power dissipation is 3000 mW. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This zener device has a nominal voltage of 15 V and a voltage tolerance of 5%. This zener diode has an operating temperature range of -55 °C to 150 °C. It is made in a single configuration.
额定电压DC 15.0 V
容差 ±5 %
额定功率 3.00 W
正向电压 1.5V @200mA
耗散功率 3 W
测试电流 25 mA
稳压值 15 V
正向电压Max 1.5V @200mA
额定功率Max 3 W
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 3 W
安装方式 Surface Mount
引脚数 2
封装 DO-214AA-2
长度 4.7 mm
宽度 3.94 mm
高度 2.44 mm
封装 DO-214AA-2
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
