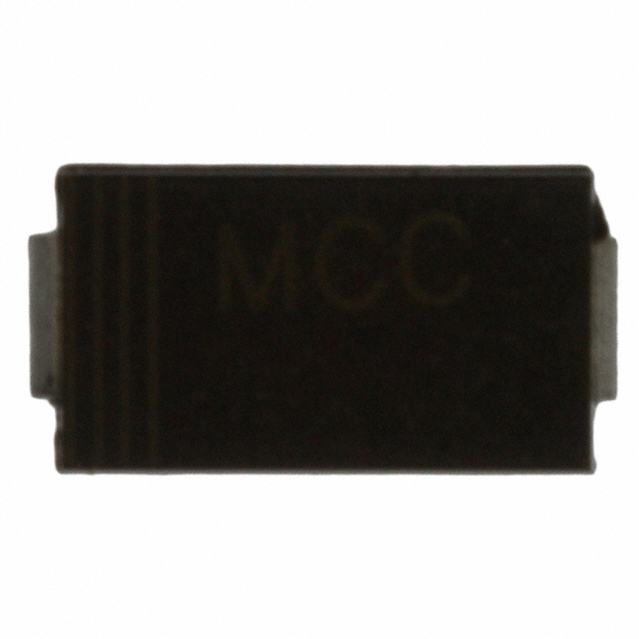

SMA 6.8V 3W
- 齐纳 ±5% 表面贴装型 DO-214AC(SMA)
得捷:
DIODE ZENER 6.8V 3W DO214AC
艾睿:
This 3SMAJ5921B-TP zener diode from Micro Commercial Components is perfect for blocking a voltage. Its maximum power dissipation is 3000 mW. Its test current is 55.1 mA. This device has a maximum regulator current of 440 mA. Its maximum leakage current is 5 μA. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This zener device has a nominal voltage of 6.8 V and a voltage tolerance of 5%. This zener diode has a minimum operating temperature of -55 °C and a maximum of 150 °C. It is made in a single configuration.
Chip1Stop:
Diode Zener Single 6.8V 5% 3W 2-Pin SMA T/R
Verical:
Zener Diode Single 6.8V 5% 2.5Ohm 3000mW 2-Pin SMA T/R
AMEYA360:
DIODE ZENER 6.8V 3W DO214AC
容差 ±5 %
正向电压 1.5V @200mA
耗散功率 3 W
测试电流 55.1 mA
稳压值 6.8 V
正向电压Max 1.5V @200mA
额定功率Max 3 W
工作温度Max 150 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AC
长度 4.6 mm
宽度 2.9 mm
高度 2.44 mm
封装 DO-214AC
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
香港进出口证 NLR
