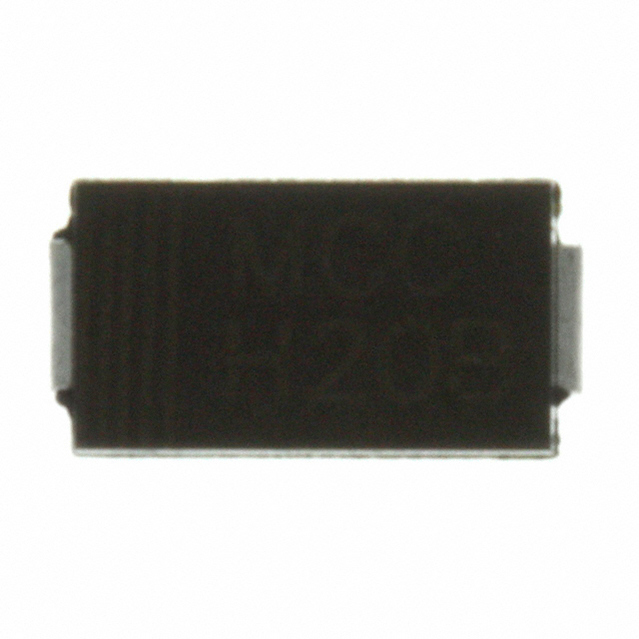

稳压二极管 3W 6.2V
- 齐纳 ±5% 表面贴装型 DO-214AC(SMA)
得捷:
DIODE ZENER 6.2V 3W DO214AC
立创商城:
6.2V 3W
贸泽:
稳压二极管 3W 6.2V
艾睿:
If your circuit requires a diode to operate in the reverse breakdown region, then this 3SMAJ5920B-TP zener diode from Micro Commercial Components is exactly what you need. This device has a maximum regulator current of 482 mA. Its test current is 60.5 mA. Its maximum leakage current is 5 μA. Its maximum power dissipation is 3000 mW. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This zener diode has a minimum operating temperature of -55 °C and a maximum of 150 °C. This zener device has a nominal voltage of 6.2 V and a voltage tolerance of 5%. It is made in a single configuration.
Verical:
Zener Diode Single 6.2V 5% 2Ohm 3000mW 2-Pin SMA T/R
容差 ±5 %
正向电压 1.5V @200mA
耗散功率 3 W
测试电流 60.5 mA
稳压值 6.2 V
正向电压Max 1.5V @200mA
额定功率Max 3 W
工作温度Max 150 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AC-2
长度 4.6 mm
宽度 2.9 mm
高度 2.44 mm
封装 DO-214AC-2
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
