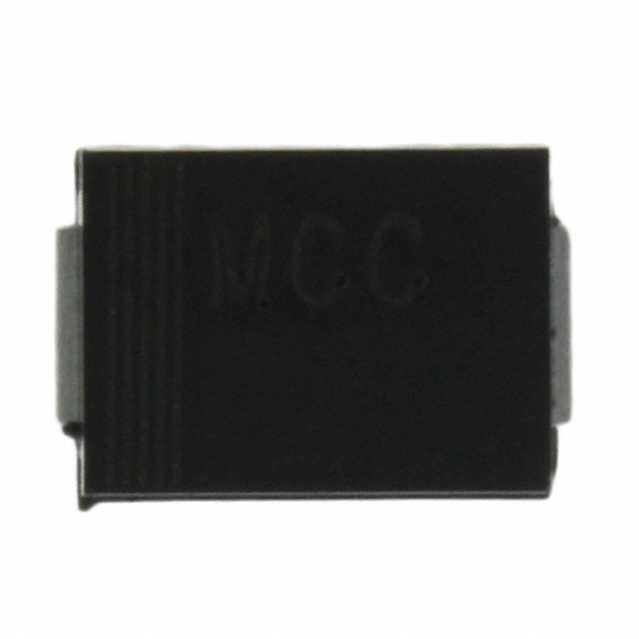

稳压二极管 3.0W 12V
Check out this perfect zener diode from for operating in the reverse breakdown region. Its maximum leakage current is 1 μA. Its test current is 31.2 mA. Its maximum power dissipation is 3000 mW. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This zener device has a nominal voltage of 12 V and a voltage tolerance of 5%. This zener diode has an operating temperature range of -55 °C to 150 °C. It is made in a single configuration.
额定电压DC 12.0 V
容差 ±5 %
额定功率 3.00 W
正向电压 1.5V @200mA
耗散功率 3 W
测试电流 31.2 mA
稳压值 12 V
额定功率Max 3 W
工作温度Max 150 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AA-2
长度 4.7 mm
宽度 3.94 mm
高度 2.44 mm
封装 DO-214AA-2
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
