3046320概述

UT 接线端子所有金属部件都是高强铜合金 简单的多导线连接 免维护“Reakdyn 原理” 所有附件均与 CLIPLINE 系列兼容 ### 注标明的电缆截面是指刚性导线电缆### UT 系列

UT

所有金属部件都是高强铜合金

简单的多导线连接

免维护“Reakdyn 原理”

所有附件均与 CLIPLINE 系列兼容

### 注

标明的电缆截面是指刚性导线电缆


得捷:
CONN TERM BLK FEED THRU 6-20 AWG


欧时:

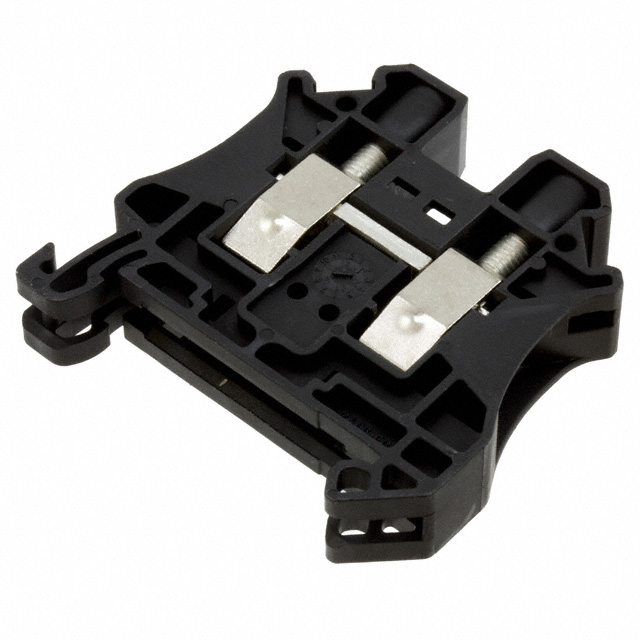

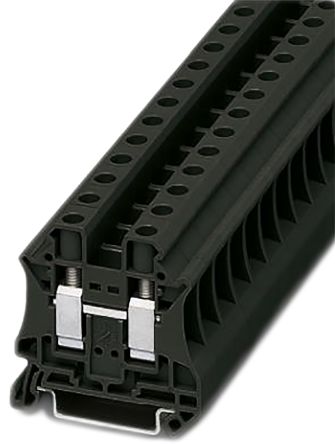

3046320 - Phoenix Contact 菲尼克斯 CLIPLINE 系列 黑色 馈通端子块


贸泽:
DIN导轨式接线端子 UT 10 BK FEEDTHRU TERM BLOCK


艾睿:
Keep your connections strong with this universal terminal blocks 3046320 PCB terminal block from Phoenix Contact utilizing clamps and screws. This F connector has 2 F contacts. This is a 2-row connector. It has a maximum voltage rating of 1000 V. It has a female type gender. It has a straight body orientation. This device has a maximum current rating of 76 A. 3046320 is housed in polyamide. This product is 46.9 mm long, 55 mm tall and 10.2 mm deep. Its wire is 6-20 AWG. It uses the screw termination method.


Allied Electronics:
Connector Terminal BLK FEED THRU 6-20AWG


Verical:
Conn Universal Terminal Block F 2 POS Screw ST T DIN Rail 57A


MASTER:
Feed-through terminal block - nom. voltage: 1000 V - nominal current: 57 A - connection method: Screw connection - number of connections: 2 - cross section: 0.5 mm² - 16 mm² - AWG: 20 - 6 - width: 10.2 mm - color: black - mounting type: NS 35/7,5 - NS 35


Online Components:
Conn Universal Terminal Block F 2 POS Screw ST T DIN Rail 57A


Electro Sonic:
Feed-through terminal block - nom. voltage: 1000 V - nominal current: 57 A - connection method: Screw connection - number ...


3046320中文资料参数规格
技术参数

触点数 2

线规 6AWG ~ 20AWG

额定电流 76 A

排数 2

电路数 1

易燃性等级 UL 94 V-0

针脚数 2

额定电流Max 57 A

额定电压Max 1000 V

额定电压 1 kV

工作电压Max 1000 V

封装参数

安装方式 DIN Rail

外形尺寸

长度 47.7 mm

宽度 10.2 mm

高度 55 mm

物理参数

外壳颜色 Black

颜色 Black

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536904000

数据手册

在线购买3046320
型号: 3046320
描述:UT 接线端子 所有金属部件都是高强铜合金 简单的多导线连接 免维护“Reakdyn 原理” 所有附件均与 CLIPLINE 系列兼容 ### 注 标明的电缆截面是指刚性导线电缆 ### UT 系列
