TB 系列### TB Series
TB 系列
得捷:
CONN TERM BLK FEED THRU 12-30AWG
欧时:

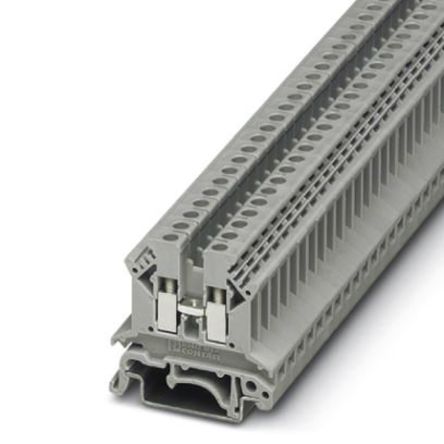

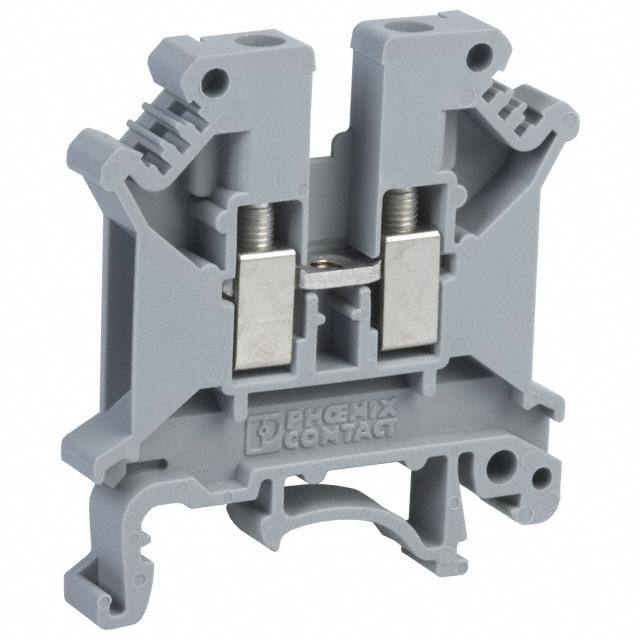

3001035 - Phoenix Contact 菲尼克斯 UK 系列 灰色 标准 Din 导轨接线端子
艾睿:
Connect test equipment together with other components by using this feed-through terminal block 3001035 PCB terminal block from Phoenix Contact. This F connector has 2 F contacts. It has a maximum voltage rating of 600 V. It has a female type gender. This is a 2-row connector. This device has a maximum current rating of 20 A. It uses the screw termination method. This product is 6.2 mm deep. Its wire is 12-24 AWG.
Allied Electronics:
Conn; Term Blk; Feed Thru; Screw; 2; 24-12 AWG; Gray; 6.2 mm W; 24 A; 600 V
Verical:
Conn Feed-Through Terminal Block F 2 POS Screw Cable Mount 20A
MASTER:
Feed-through terminal block - nom. voltage: 690 V - nominal current: 24 A - connection method: Screw connection - number of connections: 2 - cross section: 0.2 mm² - 4 mm² - AWG: 24 - 12 - width: 6.2 mm - color: gray - mounting type: NS 35/7,5 - NS 35/15
Online Components:
Conn Feed-Through Terminal Block F 2 POS Screw Cable Mount 20A
Electro Sonic:
Feed-through terminal block - nom. voltage: 690 V - nominal current: 24 A - connection method: Screw connection - number ...
