带引线的保险丝（通孔型） 250V IEC LL .500A TR5

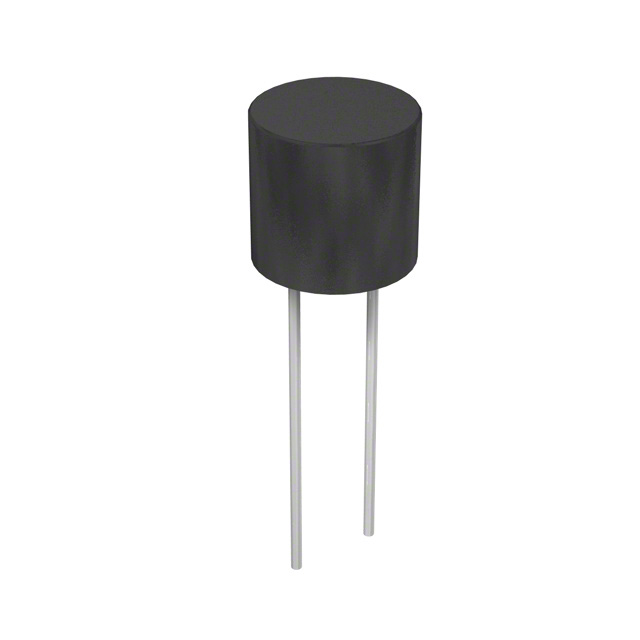

Be protected by adding a subminiature fuse developed by . This device has a maximum power dissipation of 0.155 W. This device has a current rating of 0.5. Its maximum power dissipation is 0.155 W. This fuse has an operating temperature range of -40 °C to 85 °C. It has 2 terminals. The 37005000000 fuse has a radial termination style. This product is 8Max mm tall with a diameter of 8.5 mm. The maximum AC voltage rating is 250 VAC.
额定电压DC 250 V
额定电压AC 250 V
额定电流 500 mA
易燃性等级 UL 94 V-0
耗散功率 0.155 W
电阻 121 mΩ
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 0.155 W
额定电压 250 V
额定电压AC Max 250 V
安装方式 Through Hole
引脚数 2
封装 Radial, CAN
长度 8 mm
高度 8 mm

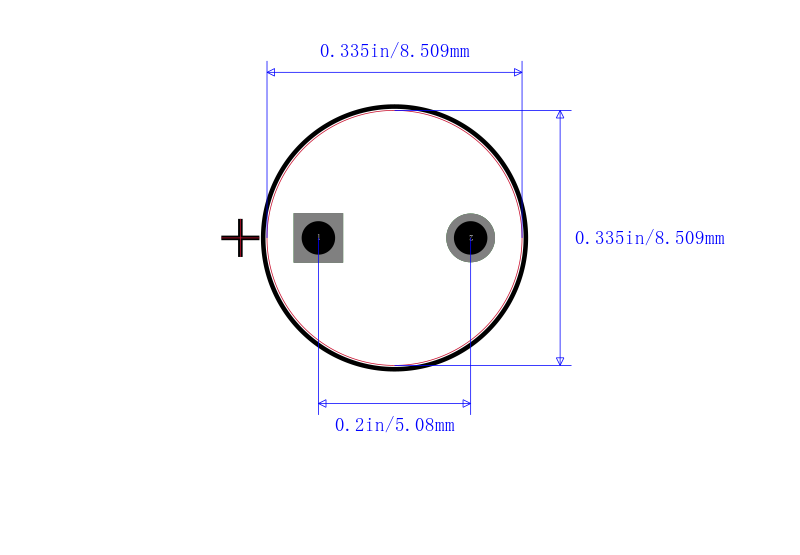

直径 8.50 mm
封装 Radial, CAN
颜色 Brown
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
