QT 系列快速连接 IDC-连接 穿通端子板 刀断开端子板,能快速连接,横截面允许您快速找到系统故障 端板可完成一排多路连接 分离器可实现光学与电气组分离 ### QT 系列
QT 系列
快速连接 IDC-连接
穿通端子板
刀断开端子板,能快速连接,横截面允许您快速找到系统故障
端板可完成一排多路连接
分离器可实现光学与电气组分离
得捷:
CONN TERM BLK FEED THRU 16-24AWG
欧时:

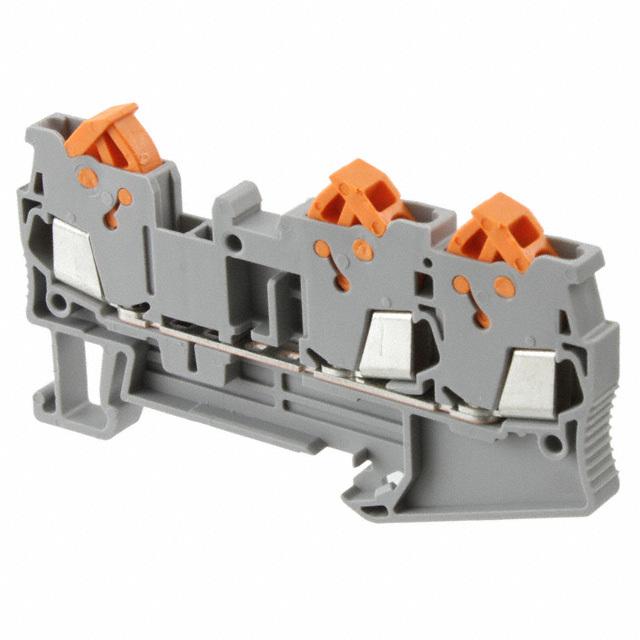

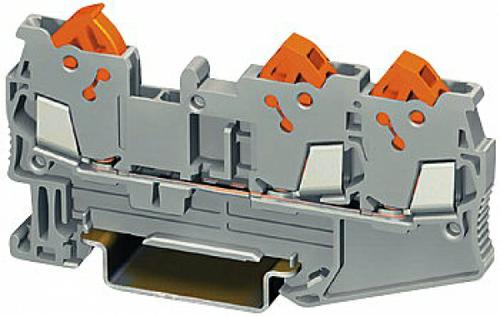

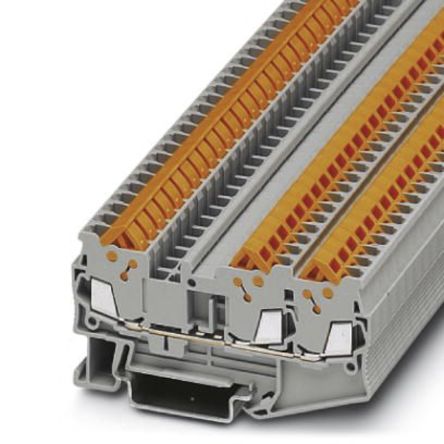

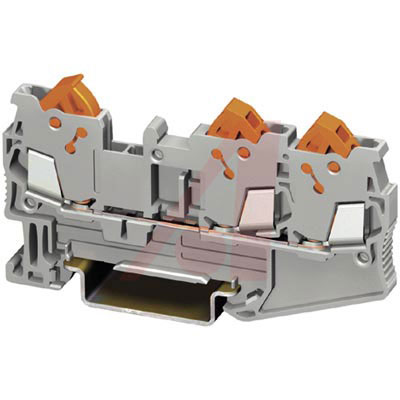

3205048 - Phoenix Contact 菲尼克斯 QTC Clipline 系列 灰色 馈通端子块
艾睿:
Phoenix Contact&s;s feed-through terminal block 3205048 PCB terminal block will ensure strong connections between circuits. It has a maximum voltage rating of 800 V. It has a straight body orientation. This is a 3-row connector. This device has a maximum current rating of 17.5 A. 3205048 is housed in polyamide. This product is 76.4 mm long, 46.8 mm tall and 5.2 mm deep. Its wire is 16-24 AWG. This quick disconnect terminal has an operating temperature of -10 to 90 °C.
Allied Electronics:
Conn; Term Blk; DIN Rail; Feed Thru; Quick Conn; 3; 24-16 AWG; Gray; 5.2 mm W
Verical:
Conn Feed-Through Terminal Block 3 POS ST T DIN Rail 17.5A
MASTER:
Feed-through terminal block - nom. voltage: 800 V - nominal current: 17.5 A - connection method: Quick connection - number of connections: 3 - cross section: 0.25 mm² - 1.5 mm² - AWG: 24 - 16 - width: 5.2 mm - color: gray - mounting type: NS 35/7,5 - NS
Electro Sonic:
Feed-through terminal block - nom. voltage: 800 V - nominal current: 17.5 A - connection method: Quick connection - number ...
触点数 3
线规 16AWG ~ 24AWG
额定电流 17.5 A
排数 3
电路数 1
易燃性等级 UL 94 V-0
针脚数 3
额定电流Max 17.5 A
工作温度Max 90 ℃
工作温度Min -10 ℃
额定电压Max 800 V
额定电压 800 V
工作电压Max 800 V
安装方式 DIN Rail
引脚间距 5.2 mm
长度 76.4 mm
宽度 5.2 mm
高度 46.8 mm
引脚间距 5.2 mm
外壳颜色 Gray
颜色 Gray
工作温度 -10℃ ~ 90℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536904000
