3005073

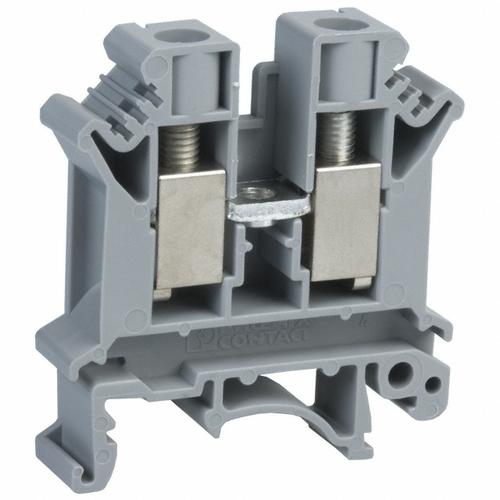

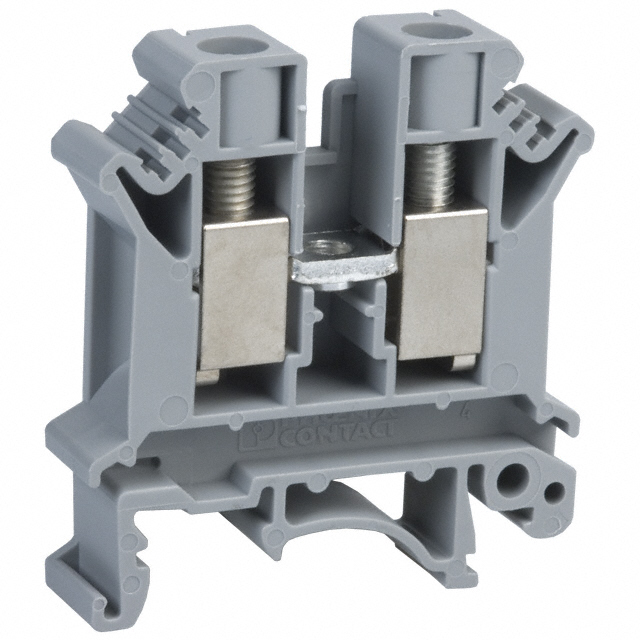

PHOENIX CONTACT  3005073  接线端子, DIN导轨安装, 2 路, 800 V, 57 A, 20 AWG, 6 AWG, 16 mm²

通用端子

通用端子，采用聚酰胺模制，适合 G 和顶帽导轨。

螺钉导线，使用闭合螺丝刀轴进行保护。 可提供 2.5mm² 到 35mm² 导线尺寸。 该系列由灰色（相位）、蓝色（中性）和黄色/绿色（接地）端子组成。 也可提供 10 路插入（跳接）桥接，与 35mm 导轨端支架一样。

**各个端子和补充附件**

**认证类别：II 2 GD EEx e II 证书 编号 KEMA 98ATEX1651U**

得捷:
CONN TERM BLK FEED THRU 6-24 AWG

欧时:
3005073 - Phoenix Contact 菲尼克斯 UK 系列 灰色 标准 Din 导轨接线端子

e络盟:
接线端子, DIN导轨安装, 2 路, 20 AWG, 6 AWG, 16 mm², 螺丝, 57 A

艾睿:
Join your electrical circuits and ensure strong connections with this universal terminal blocks 3005073 PCB terminal block from Phoenix Contact. This F connector has 2 F contacts. This is a 2-row connector. It has a straight body orientation. It has a maximum voltage rating of 800 V. It has a female type gender. This device has a maximum current rating of 76 A. 3005073 is housed in polyamide. This product is 42.5 mm long, 54.5 mm tall and 10.2 mm deep. It uses the screw termination method. Its wire is 6-20 AWG.

Allied Electronics:
Terminal Block; 20 to 6 AWG; Screw; 0.5 to 10 mm²; 10.2 mm

Verical:
Conn Universal Terminal Blocks F 2 POS Screw ST G DIN Rail/T DIN Rail 76A

Newark:
# PHOENIX CONTACT  3005073  DIN Rail Mount Terminal Block, 2 Positions, 20 AWG, 6 AWG, 16 mm², Screw, 57 A

MASTER:
Feed-through terminal block - nom. voltage: 800 V - nominal current: 57 A - connection method: Screw connection - number of connections: 2 - cross section: 0.5 mm² - 16 mm² - AWG: 20 - 6 - width: 10.2 mm - color: gray - mounting type: NS 35/7,5 - NS 35/1

Online Components:
Conn Universal Terminal Block F 2 POS Screw ST G DIN Rail/T DIN Rail 76A

Electro Sonic:
Feed-through terminal block - nom. voltage: 800 V - nominal current: 57 A - connection method: Screw connection - number ...
