37203150411

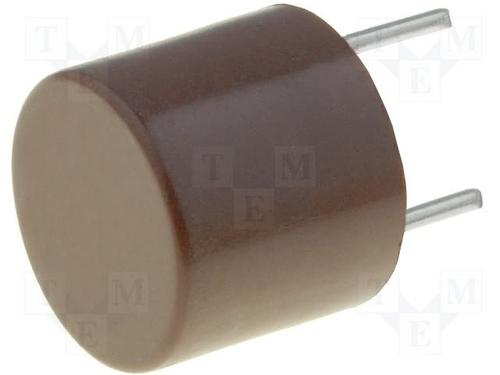

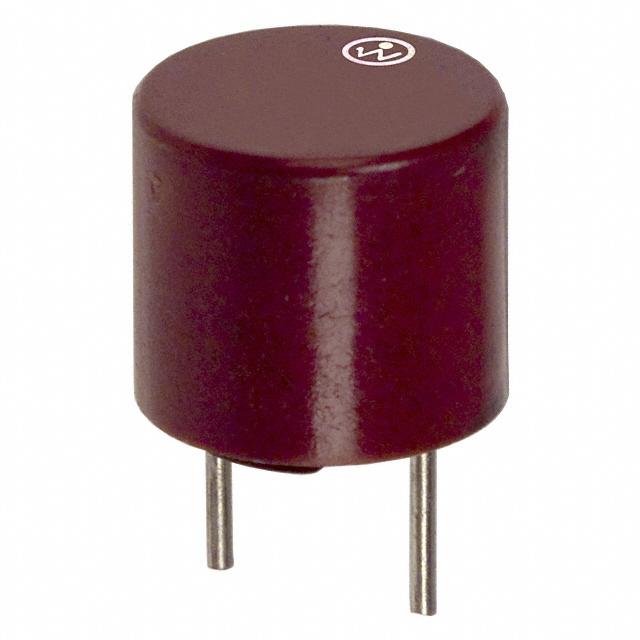

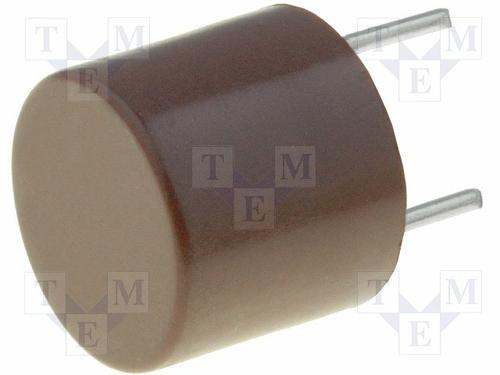

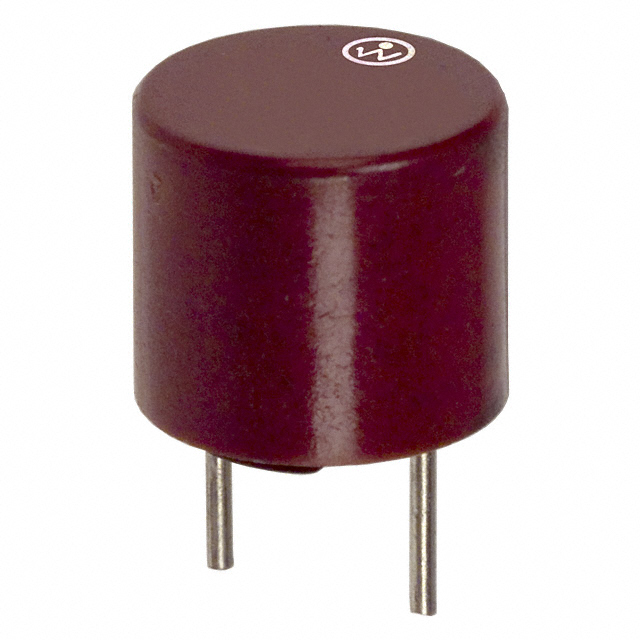

372 系列 延时 250 V 0.315 A 8.5 x 8 mm TR5® 径向引线 保险丝

315mA 250V AC DC Fuse Board Mount Cartridge Style Excluded Through Hole Radial, Can, Vertical

得捷:
FUSE BOARD MNT 315MA 250VAC RAD

艾睿:
A great alternative to a circuit breaker, this a subminiature 37203150411 fuse from Littelfuse will protect your electronics. This device has a current rating of 0.315. This device has a maximum power dissipation of 0.16 W. Its maximum power dissipation is 0.16 W. This fuse has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has 2 terminals. The 37203150411 fuse has a radial termination style. This product comes packaged in bulk, so the parts will be stored loosely. This product is 8Max mm tall with a diameter of 8.5 mm. The maximum AC voltage rating is 250 VAC.

Chip1Stop:
Fuse Subminiature Slow Blow Acting 0.315A 250V Radial 8.5 X 8mm Bulk

TME:
Fuse: fuse; time-lag; 315mA; 250VAC; TR5; Package: bag

Verical:
Fuse Subminiature Slow Blow Acting 0.315A 250V Radial 8.5 X 8mm Polyamide 66 Bulk CCC/CQC/KC/SEMKO/UL/VDE/cULus
