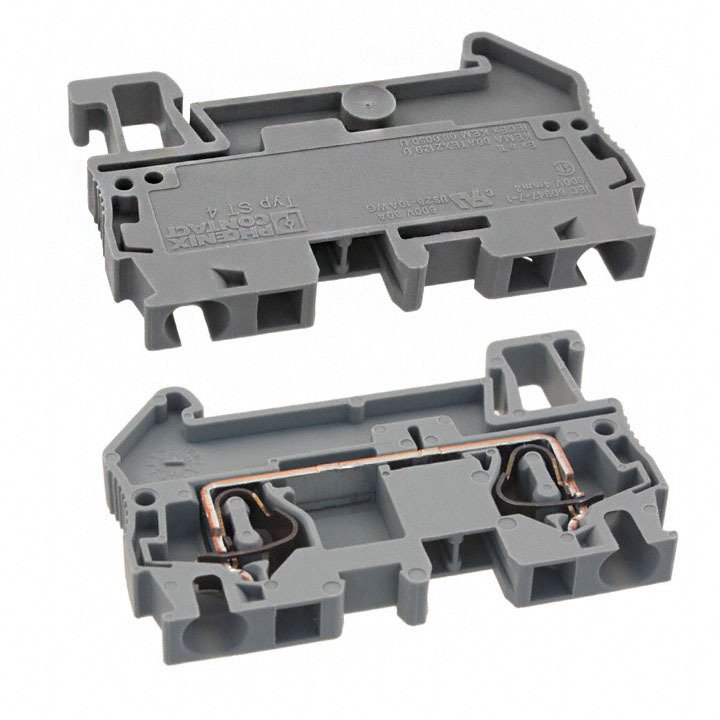

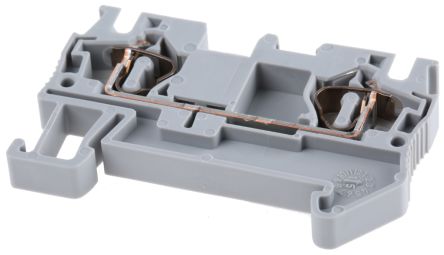

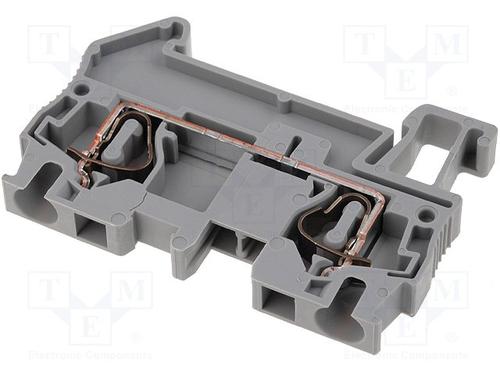

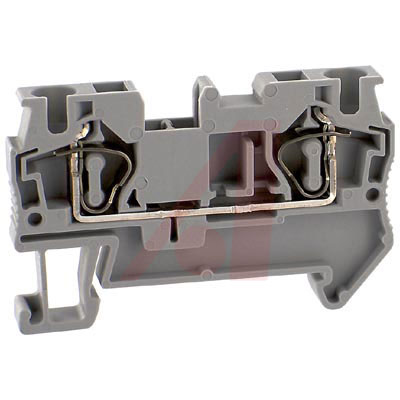

ST 接线端子这些接线端子中的小弹簧机制可节省大量空间,不影响其他常规功能。 大接线端子入口孔径允许安装靴带套圈电缆**,**可最大程度扩大接线端子的电缆容量。### 注标明的电缆截面是指刚性导线电缆### ST 系列
ST
这些接线端子中的小弹簧机制可节省大量空间,不影响其他常规功能。 大接线端子入口孔径允许安装靴带套圈电缆### 注
标明的电缆截面是指刚性导线电缆
得捷:
CONN TERM BLK FEED THRU 10-28AWG
欧时:
3031364 - Phoenix Contact 菲尼克斯 ST Clipline 系列 灰色 标准 Din 导轨接线端子
立创商城:
3031364
艾睿:
Easily mend a cutoff point in a circuit by using this feed-through terminal block 3031364 PCB terminal block from Phoenix Contact. This F connector has 2 F contacts. It has a straight body orientation. It has a female type gender. This is a 2-row connector. It has a maximum voltage rating of 800 V. 3031364 is housed in polyamide. This device has a maximum current rating of 40 A. This product is 56 mm long, 44 mm tall and 5.2 mm deep. Its wire is 12-28 AWG.
Allied Electronics:
Terminal Block; Feed-Through; 1; 2; 20 to 10 AWG; 600 V; 30 A; 8 KV; PA; 10 mm
Verical:
Conn Feed-Through Terminal Block F 2 POS ST T DIN Rail 32A
MASTER:
Feed-through terminal block - nom. voltage: 800 V - nominal current: 32 A - connection method: Spring-cage connection - number of connections: 2 - cross section: 0.08 mm² - 6 mm² - AWG: 28 - 10 - width: 6.2 mm - color: gray - mounting type: NS 35/7,5 - N
Online Components:
Conn Feed-Through Terminal Block F 2 POS ST T DIN Rail 32A
Electro Sonic:
Feed-through terminal block - nom. voltage: 800 V - nominal current: 32 A - connection method: Spring-cage connection - number ...
触点数 2
线规 10AWG ~ 28AWG
额定电压AC 800 V
额定电流 41 A
排数 2
电路数 1
易燃性等级 UL 94 V-0
针脚数 2
额定电流Max 32 A
额定电压Max 800 V
额定电压 800 V
工作电压Max 800 V
安装方式 DIN Rail
封装 600
引脚间距 5.2 mm
长度 56 mm
宽度 6.2 mm
高度 44 mm
封装 600
引脚间距 5.2 mm
外壳颜色 Gray
颜色 Gray
绝缘材质 Nylon
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536904000
