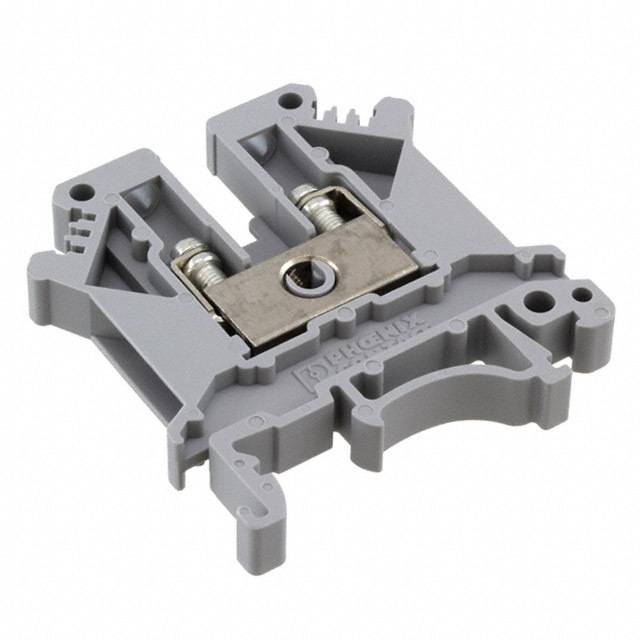

3004016

G 和顶帽导轨。 螺钉导线，使用闭合螺丝刀轴进行保护。 可提供 2.5mm² 到 35mm² 导线尺寸。 该系列由灰色（相位）、蓝色（中性）和黄色/绿色（接地）端子组成。 也可提供 10 路插入（跳接）桥接，与 35mm 导轨端支架一样。 **各个端子和补充附件** **认证类别：II 2 GD EEx e II 证书 编号 KEMA 98ATEX1651U** ### 英式系列（Phoenix DIN 导轨端子）

通用端子

通用端子，采用聚酰胺模制，适合 G 和顶帽导轨。

螺钉导线，使用闭合螺丝刀轴进行保护。 可提供 2.5mm² 到 35mm² 导线尺寸。 该系列由灰色（相位）、蓝色（中性）和黄色/绿色（接地）端子组成。 也可提供 10 路插入（跳接）桥接，与 35mm 导轨端支架一样。

**各个端子和补充附件**

**认证类别：II 2 GD EEx e II 证书 编号 KEMA 98ATEX1651U**

欧时:
Conn; Term Blk; DIN Rail Feed Thru Screw

得捷:
CONN TERM BLK FEED THRU 10-26AWG

艾睿:
Phoenix Contact&s;s universal terminal blocks 3004016 PCB terminal block will ensure strong connections between circuits. This F connector has 2 F contacts. This is a 2-row connector. It has a female type gender. It has a straight body orientation. This product is 6.2 mm deep. Its wire is 10-26 AWG. It uses the screw termination method.

Allied Electronics:
Conn; Term Blk; DIN Rail; Feed Thru; Screw; 2; 24-10 AWG; Gray; 6.2 mm W

Verical:
Conn Feed-Through Terminal Block F 2 POS Screw ST G DIN Rail/T DIN Rail 32A

MASTER:
Feed-through terminal block - nom. voltage: 800 V - nominal current: 32 A - connection method: Screw connection - number of connections: 2 - cross section: 0.2 mm² - 4 mm² - AWG: 24 - 10 - width: 6.2 mm - color: gray - mounting type: NS 35/7,5 - NS 35/15

Online Components:
Conn Feed-Through Terminal Block F 2 POS Screw ST G DIN Rail/T DIN Rail 32A

Electro Sonic:
Feed-through terminal block - nom. voltage: 800 V - nominal current: 32 A - connection method: Screw connection - number ...
