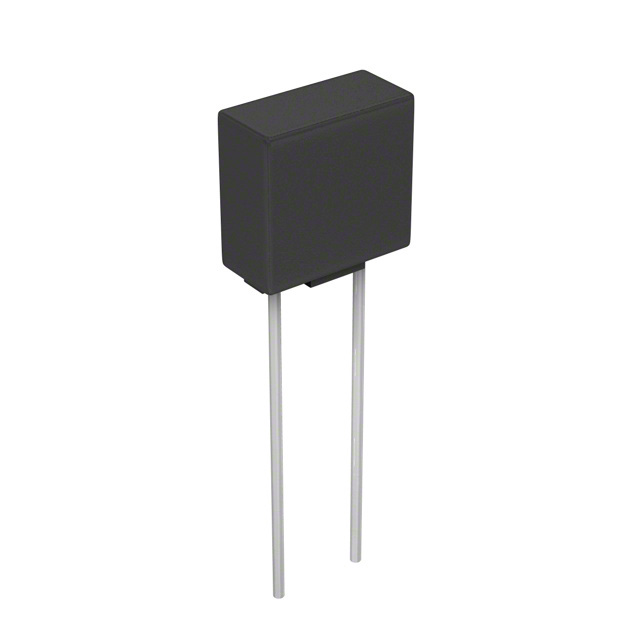

LITTELFUSE WICKMANN 39208000000 保险丝, 延时型, 800mA, 250VAC, 径向引线
800mA 250V AC DC Fuse Board Mount Cartridge Style Excluded Through Hole Radial, Box
得捷:
FUSE BOARD MNT 800MA 250VAC RAD
立创商城:
250V 0.8A 惯性保险丝
贸泽:
Fuses with Leads Through Hole 250V IEC TL LL .800A TE5
艾睿:
Fuse Subminiature Slow Blow Acting 0.8A 250V Radial 8.5 X 4 X 8mm Thermoplastic Ammo CQC/KC/SEMKO/UL/VDE
Chip1Stop:
Fuse Subminiature Slow Blow Acting 0.8A 250V Radial 8.5 X 4 X 8mm Thermoplastic Ammo Pack
Verical:
Fuse Subminiature Slow Blow Acting 0.8A 250V Radial 8.5 X 4 X 8mm Thermoplastic Ammo CQC/KC/SEMKO/UL/VDE
Win Source:
FUSE BOARD MNT 800MA 250VAC RAD
额定电压DC 250 V
额定电压AC 250 V
额定电流 800 mA
易燃性等级 UL 94 V-0
耗散功率 0.28 W
电阻 0.096 Ω
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 0.28 W
额定电压 250 V
额定电压AC Max 250 V
安装方式 Through Hole
引脚数 2
封装 Radial, Box
长度 8.5 mm
宽度 4 mm
高度 8 mm
封装 Radial, Box
颜色 Brown
工作温度 -40℃ ~ 125℃
产品生命周期 Obsolete
包装方式 Tape
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
