3208171概述

Conn; TermBlk; DINRail; Ground; Push-InConn; 3.5mm; 26-14AWG; Green/YL; NS35/7.5, NS35/17

**Product Features**

* The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors

* The compact design and front connection enable wiring in a confined space

* In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection

* Tested for railway applications


欧时:

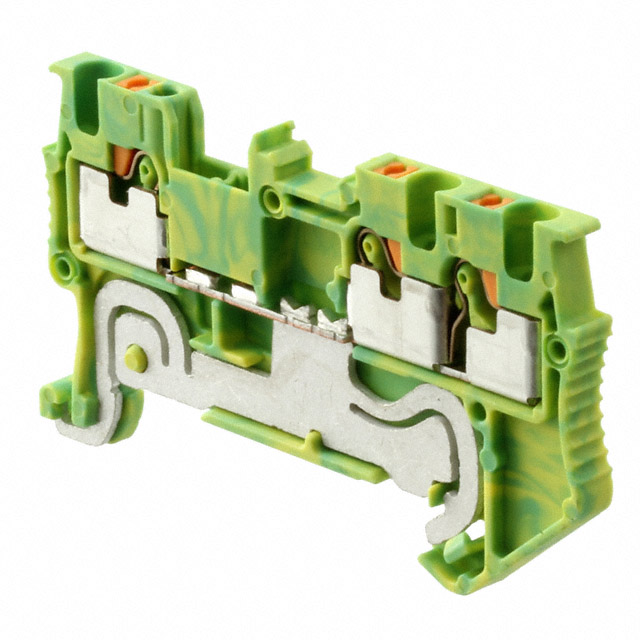

Ground modular terminal block


得捷:
CONN TERM BLK GROUND 14-26AWG


艾睿:
Conn Ground Modular Terminal Block 3 POS G DIN Rail/T DIN Rail


Allied Electronics:
Conn; TermBlk; DINRail; Ground; Push-InConn; 3.5mm; 26-14AWG; Green/YL; NS35/7.5, NS35/17


Verical:
Conn Ground Modular Terminal Block 3 POS G DIN Rail/T DIN Rail


MASTER:
Conn Ground Modular Terminal Block 3 POS G DIN Rail/T DIN Rail


Online Components:
Conn Ground Modular Terminal Block 3 POS G DIN Rail/T DIN Rail


Electro Sonic:
Conn Ground Modular Terminal Block 3 POS G DIN Rail/T DIN Rail


3208171中文资料参数规格
技术参数

触点数 3

线规 14AWG ~ 26AWG

电路数 3

易燃性等级 UL 94 V-0

针脚数 4

封装参数

安装方式 DIN Rail

外形尺寸

长度 54 mm

宽度 3.5 mm

高度 30.5 mm

物理参数

外壳颜色 Green, Yellow

颜色 Green, Yellow

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536904000

数据手册

在线购买3208171
型号: 3208171
描述:Conn; TermBlk; DINRail; Ground; Push-InConn; 3.5mm; 26-14AWG; Green/YL; NS35/7.5, NS35/17
