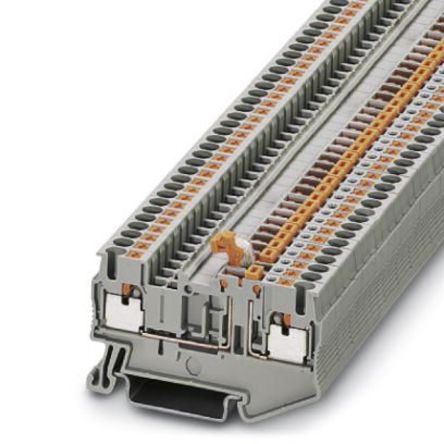

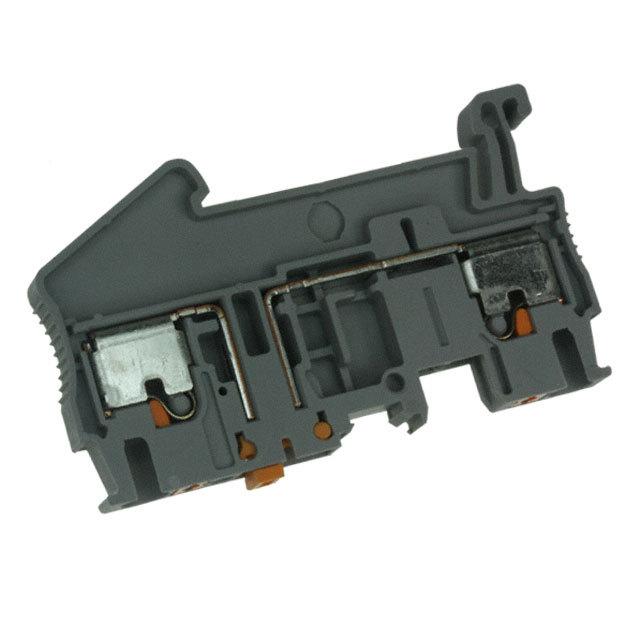

Knife Disconnect Terminal Blocks MT/TGFeed-through terminal blocks with knife disconnect option with PT Push-In technology. The integrated double function shaft located on the one side of the disconnect point and the integrated test contact on the other side provide for comfortable testing.50 % less insertion force Direct plugging from 0.34 mm Actuation button for disconnecting conductors or wiring small cross sections from 0.14 mm High current carrying capacity: 20A, 400V Flexibly applicable with standardized plug-in zone for function elements Standard plug-in bridges for all power distribution tasks ### 推入式连接端子块PT 系列特性包括轻松直接的导线连接，并始终采用 CLIPLINE 完整系统的优点。 PT 推入式连接方法高达 50% 更低的插入力，还可使用 0.34mm2 及以上套圈轻松直接插接实心和绞合线。
端子块 位置
得捷:
CONN TERM BLK DISCONN 12-26AWG
欧时:
3210156 - Phoenix Contact 菲尼克斯 PT Clipline 系列 灰色 刀剥离端子块
艾睿:
Conn Knife Disconnect Terminal Block F 2 POS T DIN Rail 20A
Allied Electronics:
Conn; Term Blk; DIN Rail; Knife Disconnect; Push-InConn; 26-12AWG; Gray; 5.2mm W
Verical:
Conn Disconnect and Test Disconnect Terminal Block F 2 POS T DIN Rail 20A
MASTER:
Knife disconnect terminal block - nom. voltage: 400 V - nominal current: 20 A - connection method: Push-in connection - cross section: 0.14 mm² - 4 mm² - AWG: 26 - 12 - length: 62 mm - width: 5.2 mm - color: gray - mounting: NS 35/7,5 - NS 35/15
Electro Sonic:
Knife disconnect terminal block - nom. voltage: 400 V - nominal current: 20 A - connection method: Push-in connection - ...
