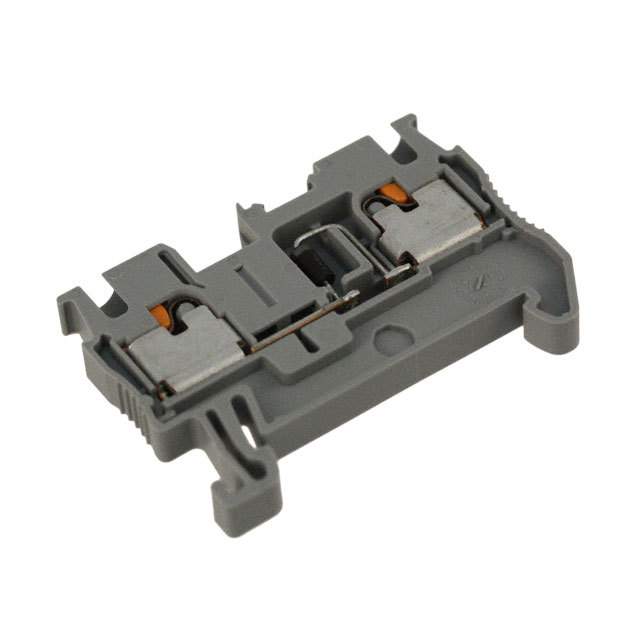

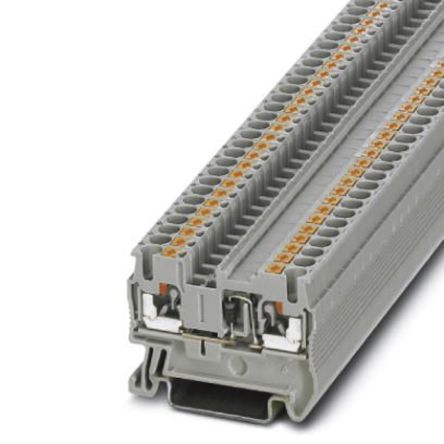

Diode and Lamp Terminal Blocks
Using the diode terminal blocks of the PT push-in connection terminal blocks makes it possible to solve a variety of switching tasks. The diode is integrated either from left to right or vice versa in the terminal housings. Three and four-conductor terminal blocks are also available for multi-conductor connections.
Integrated diodes 1N 4007 and lamps on certain parts
Push-In technology with 50 % less insertion force for direct plugging from 0.34 mm
Configurations include lamp test circuits and fault message circuits

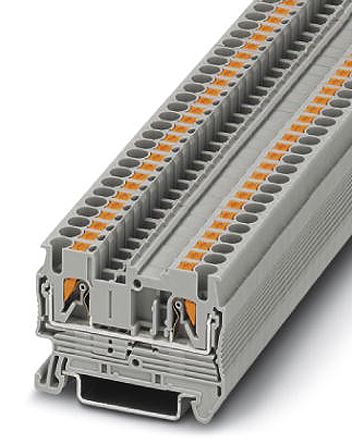

### 推入式连接端子块
PT 系列特性包括轻松直接的导线连接,并始终采用 CLIPLINE 完整系统的优点。 PT 推入式连接方法高达 50% 更低的插入力,还可使用 0.34mm2 及以上套圈轻松直接插接实心和绞合线。
