3048616

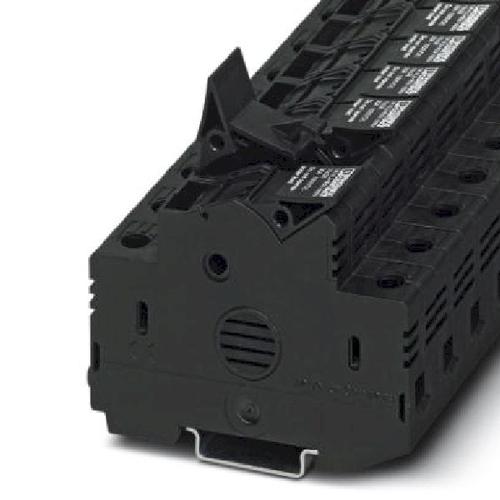

3048616图片1

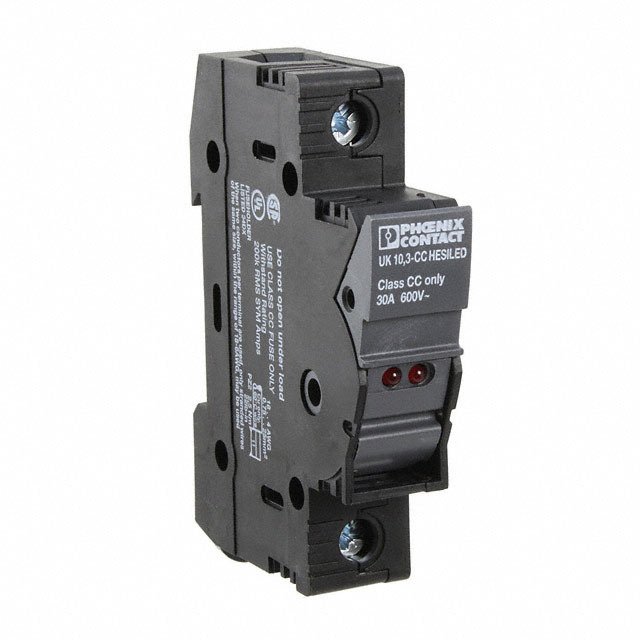

3048616图片2

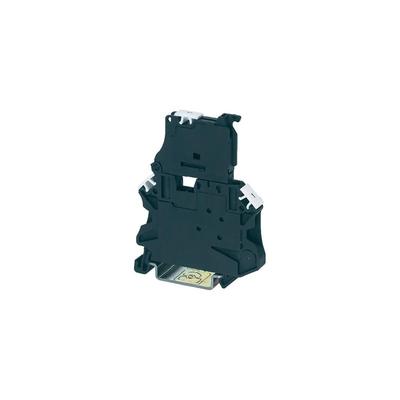

3048616图片3

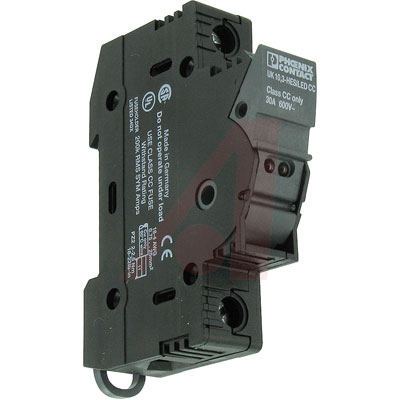

3048616图片4
3048616图片5
3048616图片6
3048616概述

Conn Fuse Modular Terminal Block F 2POS Screw RA Cable Mount 32A

**Fuse Terminals**

These US-HESI series of fuse terminal blocks have a hinged diskonnect lever, and a flip-open compartment to accommodate a fuse.


得捷:
CONN TERM BLK DISCONNECT 6-18AWG


贸泽:
DIN Rail Terminal Blocks UK 10.3-CC HESILED 600V/30A/18-4AWG


艾睿:
Fuse Modular Terminal Block F 2 POS Screw RA Cable Mount 32A


Allied Electronics:
Fuse Holder for CC Fuse with light indication-branch circuit protection


Verical:
Fuse Modular Terminal Block F 2 POS Screw RA Cable Mount 32A


MASTER:
Connector Fuse Modular Terminal Block - Fuse - 2 Position - Screw - Cable Mount - 32A - 6-18 AWG.


Online Components:
Conn Fuse Modular Terminal Block F 2 POS Screw RA Cable Mount 32A


Electro Sonic:
Fuse modular terminal block - fuse type: Glass / ceramics / ... - connection method: Screw connection - cross section: ...


3048616中文资料参数规格
技术参数

触点数 2

线规 6AWG ~ 18AWG

额定电流 32 A

排数 1

电路数 2

易燃性等级 UL 94 V-0

针脚数 2

额定电流Max 32 A

负载电流Max 32 A

额定电压Max 600 V

额定电压 690 V

工作电压Max 600 V

封装参数

安装方式 DIN Rail

封装 600

外形尺寸

长度 81 mm

宽度 18 mm

高度 65.5 mm

封装 600

物理参数

外壳颜色 Black

颜色 Black

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536904000
