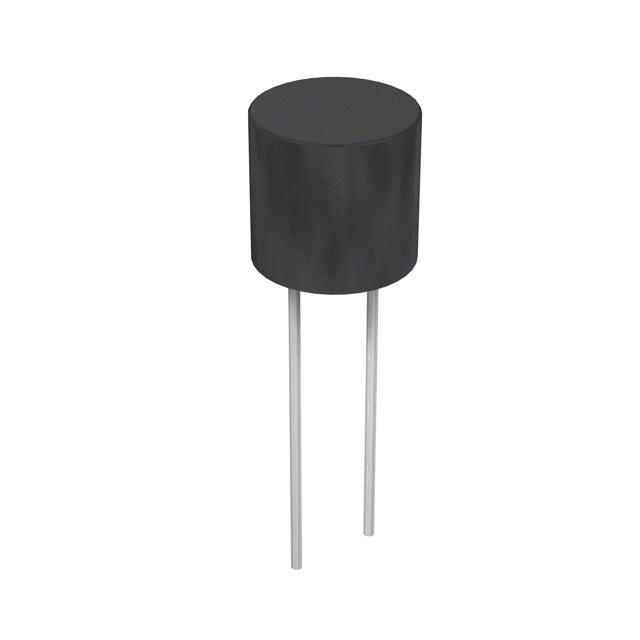

372 系列 延时 250 V 5 A Ø 8.5 x 8 mm 通孔 径向引线 保险丝
5 A 250 V AC 直流保险丝 板安装（不包括管筒式） 通孔 径向，罐状，垂直
立创商城:
250VAC 5A 延时型
得捷:
FUSE BOARD MOUNT 5A 250VAC RAD
艾睿:
Be protected by adding a subminiature 37215000001 fuse developed by Littelfuse. This device has a current rating of 5. This device has a maximum power dissipation of 1.3 W. Its maximum power dissipation is 1.3 W. This fuse has an operating temperature range of -40 °C to 85 °C. It has 2 terminals. The 37215000001 fuse has a radial termination style. This product is 8Max mm tall with a diameter of 8.5 mm. The maximum AC voltage rating is 250 VAC.
富昌:
372 系列 延时 250 V 5 Ø A 8.5 x 8 mm 通孔 径向引线 保险丝
Chip1Stop:
Fuse Subminiature Slow Blow Acting 5A 250V Radial 8.5 X 8mm Ammo Pack
TME:
Fuse: fuse; time-lag; 5A; 250VAC; TR5; Package: Ammo Pack, tape
Verical:
Fuse Subminiature Slow Blow Acting 5A 250V Radial 8.5 X 8mm Polyamide 66 Ammo CCC/CQC/KC/SEMKO/UL/VDE/cULus
额定电压DC 250 V
额定电压AC 250 V
额定电流 5 A
易燃性等级 UL 94 V-0
耗散功率 1.3 W
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 1.3 W
额定电压 250 V
额定电压AC Max 250 V
安装方式 Through Hole
引脚数 2
封装 Radial, CAN
长度 8 mm
高度 8 mm
直径 8.50 mm
封装 Radial, CAN
颜色 Brown
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
