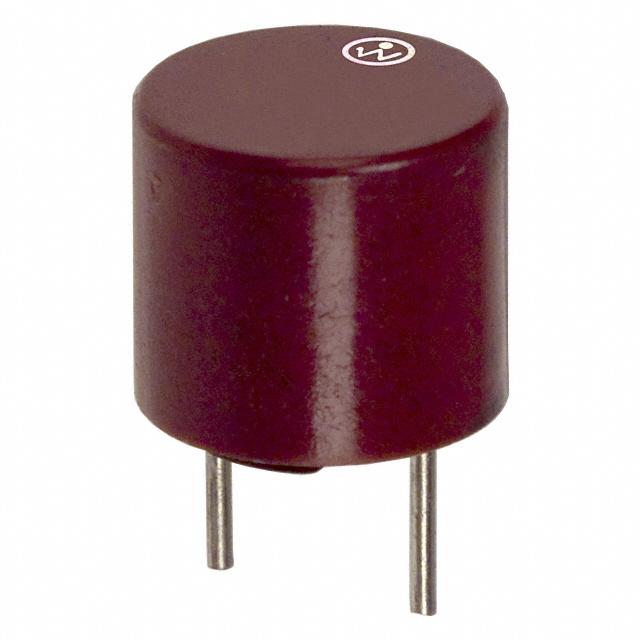

372 系列 延时 250 V 6.3 A 8.5 x 8 mm TR5® 径向引线 保险丝
6.3A 250V AC DC Fuse Board Mount Cartridge Style Excluded Through Hole Radial, Can, Vertical
得捷:
FUSE BOARD MOUNT 6.3A 250VAC RAD
立创商城:
250VAC 6.3A 惯性保险丝
艾睿:
Be protected by adding a subminiature 37216300411 fuse developed by Littelfuse. Its maximum power dissipation is 1.25 W. This device has a current rating of 6.3. This device has a maximum power dissipation of 1.25 W. This fuse has an operating temperature range of -40 °C to 85 °C. It has 2 terminals. The 37216300411 fuse has a radial termination style. This product comes packaged in bulk, so the parts will be stored loosely. This product is 8Max mm tall with a diameter of 8.5 mm. The maximum AC voltage rating is 250 VAC.
Chip1Stop:
Fuse Subminiature Slow Blow Acting 6.3A 250V Radial 8.5 X 8mm Bulk
TME:
Fuse: fuse; time-lag; 6.3A; 250VAC; TR5; Package: bag
Verical:
Fuse Subminiature Slow Blow Acting 6.3A 250V Radial 8.5 X 8mm Polyamide 66 Bulk CCC/CQC/KC/SEMKO/UL/VDE/cULus
额定电压DC 250 V
额定电压AC 250 V
额定电流 6.3 A
易燃性等级 UL 94 V-0
耗散功率 1.25 W
电阻 0.007 Ω
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 1.25 W
额定电压 250 V
额定电压AC Max 250 V
安装方式 Through Hole
引脚数 2
封装 Radial, CAN
长度 8 mm
高度 8 mm
直径 8.50 mm
封装 Radial, CAN
颜色 Brown
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
