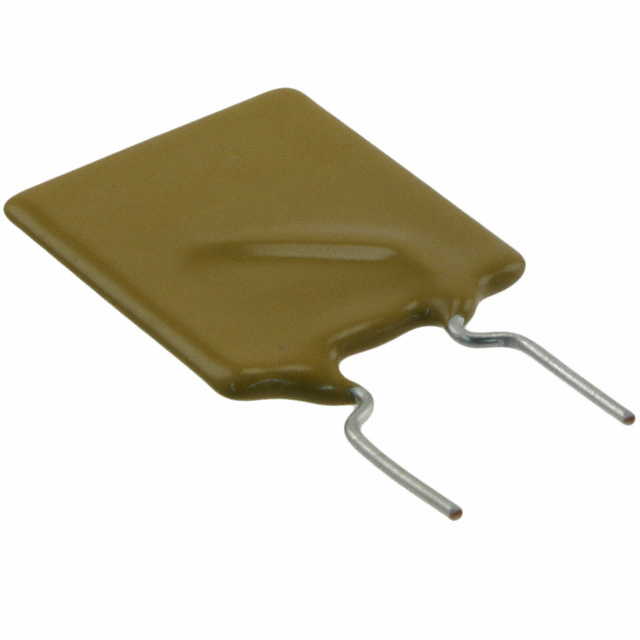

LITTELFUSE 30R700UF 自复式保险丝, PTC, 径向引线, 7A
Do you need a more convenient and quicker way for your protected equipment to be restored into operation after a fuse burns out? Then this PTC resettable fuse from is perfect for you! This part has a lead diameter of 0.81 mm. This device has a maximum current rating of 40. This resettable fuse has an operating temperature range of -40 °C to 85 °C. It has 2 terminals. This product"s terminal pitch is 10.2typ mm. This product is 19.1Max mm long, 28.6Max mm tall and 3Max mm deep.
额定电压DC 30.0 V
工作电压 30 V
跳闸时间 17.5 s
额定电流 7 A
额定功率 3.8 W
耗散功率 3.8 W
电阻 0.03 Ω
保持电流 7 A
跳闸电流 14 A
额定电流Max 40 A
保持电流Max 7 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 30 VDC
额定电压 30 VDC
安装方式 Through Hole
引脚数 2
封装 Radial, Disc
长度 19.1 mm
宽度 19.1 mm
高度 28.6 mm
封装 Radial, Disc
厚度 3.05 mm
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
ECCN代码 EAR99
