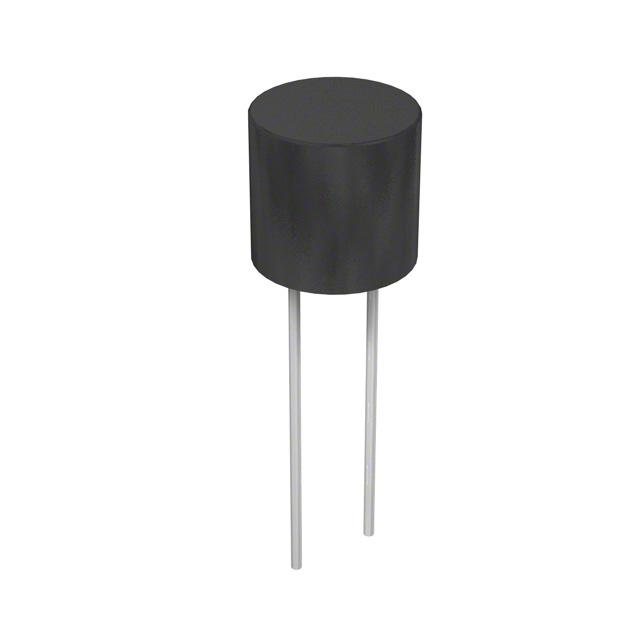

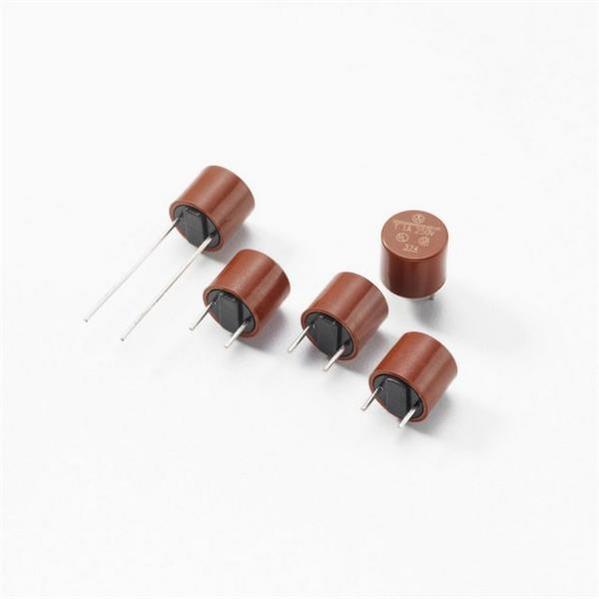

374系列， TR5 ，延时保险丝 374 Series, TR5, Time-Lag Fuse
250mA 250V AC DC Fuse Board Mount Cartridge Style Excluded Through Hole Radial, Can, Vertical
得捷:
FUSE BOARD MNT 250MA 250VAC RAD
贸泽:
带引线的保险丝（通孔型） 250V UL TL LL .250A TR5
艾睿:
A great alternative to a circuit breaker, this a subminiature 37402500000 fuse from Littelfuse will protect your electronics. This device has a maximum power dissipation of 0.09 W. This device has a current rating of 0.25. Its maximum power dissipation is 0.09 W. This fuse has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has 2 terminals. The 37402500000 fuse has a radial termination style. Its fuse is made from thermoplastic. This product is 8Max mm tall with a diameter of 8.5 mm. The maximum AC voltage rating is 250 VAC.
Chip1Stop:
Fuse Subminiature Slow Blow Acting 0.25A 250V Radial 8.5 X 8mm Thermoplastic Tape and Ammo
Verical:
Fuse Subminiature Slow Blow Acting 0.25A 250V Radial 8.5 X 8mm Thermoplastic Ammo CSA/UL
额定电压DC 250 V
额定电压AC 250 V
额定电流 0.25 A
易燃性等级 UL 94 V-0
耗散功率 0.09 W
电阻 760 mΩ
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 0.09 W
额定电压 250 V
额定电压AC Max 250 V
安装方式 Through Hole
引脚数 2
封装 Radial, CAN
长度 8 mm
高度 8 mm
直径 8.50 mm
封装 Radial, CAN
颜色 Brown
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape
RoHS标准 RoHS Compliant
含铅标准 Lead Free
