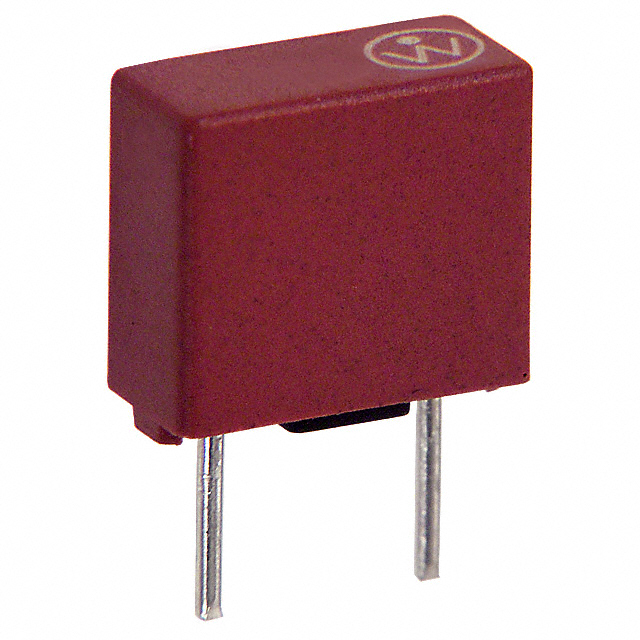

LITTELFUSE WICKMANN 39605000440 保险丝, PCB安装, 125V
Be protected by adding a subminiature fuse developed by . This device has a maximum power dissipation of 110 W. Its maximum power dissipation is 110 W. This device has a current rating of 0.5. This fuse has an operating temperature range of -40 °C to 85 °C. It has 2 terminals. The 39605000440 fuse has a radial termination style. This product comes packaged in bulk, so the parts will be stored loosely. This product is 8.5 mm long, 8Max mm tall and 4Max mm deep. The maximum AC voltage rating is 125 VAC.
额定电压DC 125 V
额定电压AC 125 V
额定电流 500 mA
易燃性等级 UL 94 V-0
耗散功率 110 W
电阻 0.247 Ω
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 110 W
额定电压 125 V
额定电压AC Max 125 V
安装方式 Through Hole
引脚数 2
封装 Radial, Box
长度 8.5 mm
宽度 4 mm
高度 8 mm
封装 Radial, Box
颜色 Brown
工作温度 40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
