3046362

PHOENIX CONTACT  3046362  接线端子, DIN导轨安装, 2 路, 400 V, 20 A, 26 AWG, 12 AWG, 4 mm²

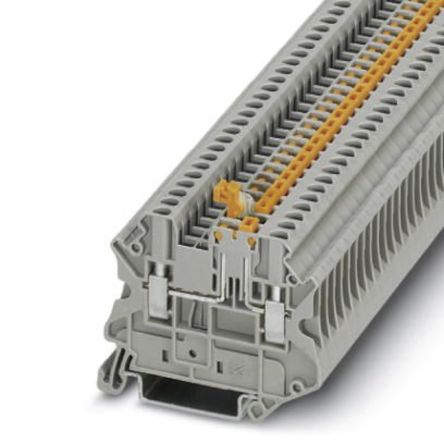

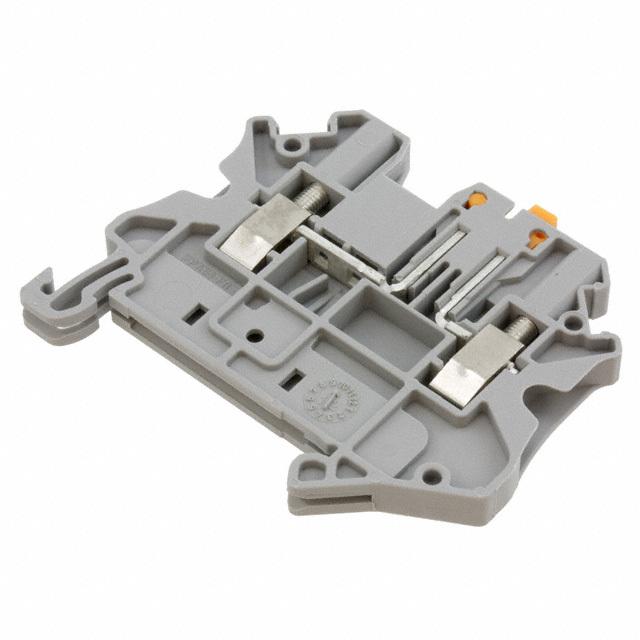

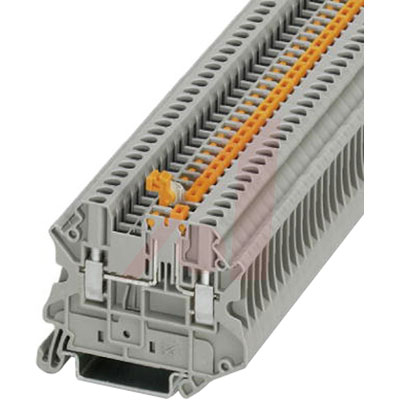

UT 刀片断开端子块

Contact 专业 UT 系列刀剥离端子块。 这些螺钉连接端子块采用紧凑型设计，具有操作闩锁，可在受限空间进行电缆布线。 所有端子块均高度可靠且质量极佳。

紧凑型设计和 20A 大电流承载能力

双桥接轴可进行单独电势分配和供电

用于相同形状的 UT-MTD 馈通端子块

欧时:
Knife disconnect term block UT 2,5-MT

得捷:
CONN TERM BLK DISCONN 12-26AWG

e络盟:
接线端子, DIN导轨安装, 2 路, 400 V, 20 A, 26 AWG, 12 AWG, 4 mm²

艾睿:
Say goodbye to wires becoming undone by using this universal terminal blocks 3046362 PCB terminal block developed by Phoenix Contact. This F connector has 2 F contacts. This is a 2-row connector. It has a female type gender. It has a maximum voltage rating of 400 V. This device has a maximum current rating of 20 A. 3046362 is housed in polyamide. It uses the screw termination method. This product is 57.8 mm long, 56.6 mm tall and 5.2 mm deep. Its wire is 12-26 AWG.

Allied Electronics:
Conn; Term Blk; Universal; Screw; 2; 26-12 AWG; Gray; 5.2 mm W; 20 A; 400 V

Verical:
Conn Knife Disconnect Terminal Block F 2 POS Screw T DIN Rail 20A

Newark:
# PHOENIX CONTACT  3046362  DIN Rail Mount Terminal Block, 2 Positions, 26 AWG, 12 AWG, 4 mm², Screw, 20 A

MASTER:
Knife disconnect terminal block - nom. voltage: 400 V - nominal current: 20 A - connection method: Screw connection - cross section: 0.14 mm² - 4 mm² - AWG: 26 - 12 - length: 57.8 mm - width: 5.2 mm - color: gray - mounting: NS 35/7,5 - NS 35/15

Online Components:
Conn Universal Terminal Blocks F 2 POS Screw T DIN Rail 20A

Electro Sonic:
Knife disconnect terminal block - nom. voltage: 400 V - nominal current: 20 A - connection method: Screw connection - ...
