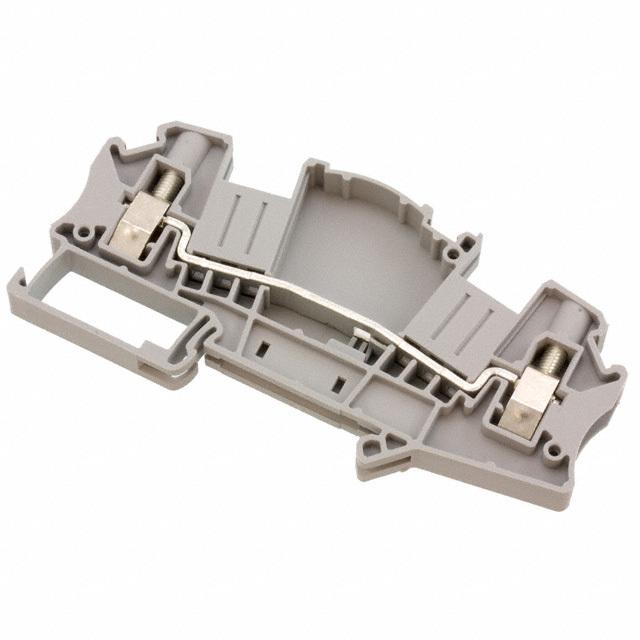

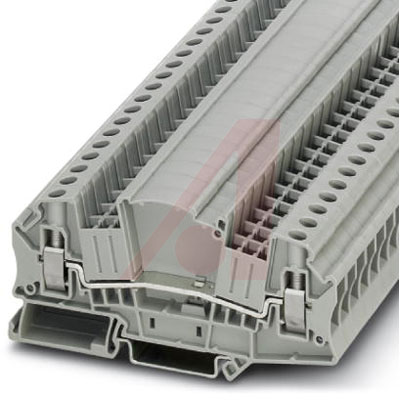

Conn Feed-Through Terminal Block F 2POS Screw Cable Mount 30A
**UTMED Feed Through Terminal Blocks**
**Featured List:**
* Clear selection thanks to printed switching symbols
* Easy operation
* Six function shafts
* Compact design
* Flexible and comprehensive accessories
* Reliably snapped into the end positions
* Contact made via screw terminal points
得捷:
CONN TERM BLK FEED THRU 8-24 AWG
艾睿:
Never worry about wires becoming undone by implementing this feed-through terminal block 3047413 PCB terminal block developed by Phoenix Contact. This F connector has 2 F contacts. This is a 2-row connector. It has a female type gender. It has a maximum voltage rating of 500 V. This device has a maximum current rating of 30 A. 3047413 is housed in polyamide. This product is 100.8 mm long, 57.1 mm tall and 8.2 mm deep. It uses the screw termination method. Its wire is 8-24 AWG.
Allied Electronics:
Conn; TermBlk; DIN Rail; SingleLVL; Feed-Thru; ScrewConn; 2Conn; 24-8AWG; Gray
MASTER:
Feed-through terminal block - nom. voltage: 500 V - nominal current: 41 A - connection method: Screw connection - number of connections: 2 - cross section: 0.2 mm² - 10 mm² - AWG: 24 - 8 - width: 8.2 mm - color: gray - mounting type: NS 35/7,5 - NS 35/15
Electro Sonic:
Feed-through terminal block - nom. voltage: 500 V - nominal current: 41 A - connection method: Screw connection - number ...
