3000564

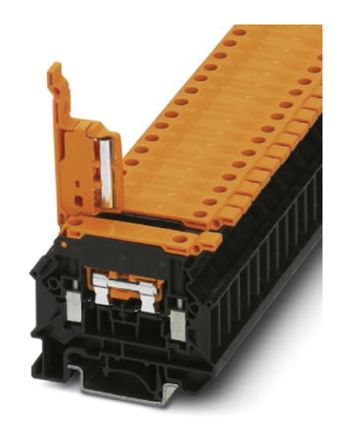

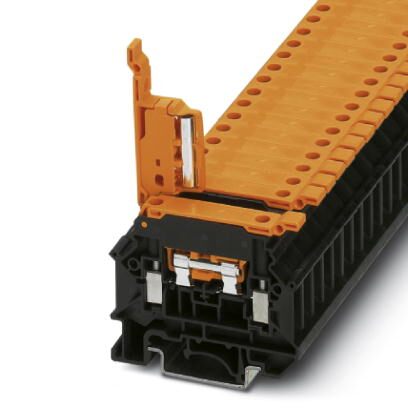

Phoenix Contact UK 系列 黑色/橙色 断开接线排 3000564, 16A, 500 V

端子块 位置 断连 黑色 10-24AWG

得捷:
CONN TERM BLK DISCONN 10-24AWG

欧时:
3000564 - Phoenix Contact 菲尼克斯 UK 系列 黑色/橙色 断开接线排

贸泽:
DIN导轨式接线端子 UK 5-HEDI N

艾睿:
Keep your connections strong with this 3000564 PCB terminal block from Phoenix Contact utilizing clamps and screws. It has a maximum voltage rating of 500 V. 3000564 is housed in polyamide. This device has a maximum current rating of 16 A. It uses the screw termination method.

Allied Electronics:
Disconnect terminal block; Screw conn; AWG:20-10; 16 A; 500 V; L:58mm; W:8.2mm

Verical:
Conn Disconnect Terminal Block 2 POS Screw DIN Rail 16A

MASTER:
Lever-type disconnect terminal block - nom. voltage: 500 V - nominal current: 16 A - connection method: Screw connection - cross section: 0.5 mm² - 6 mm² - AWG: 20 - 10 - length: 58 mm - width: 8.2 mm - color: black/orange - mounting: NS 35/7,5 - NS 35/15

Online Components:
Disconnect terminal block, Connection type: Screw connection, Cross section: 0.5 mm² - 6 mm², AWG: 20 - 10, Nominal current: ...
