3005086

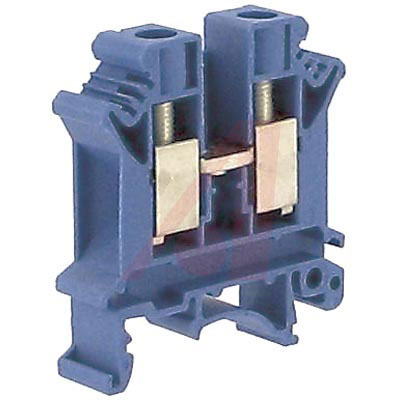

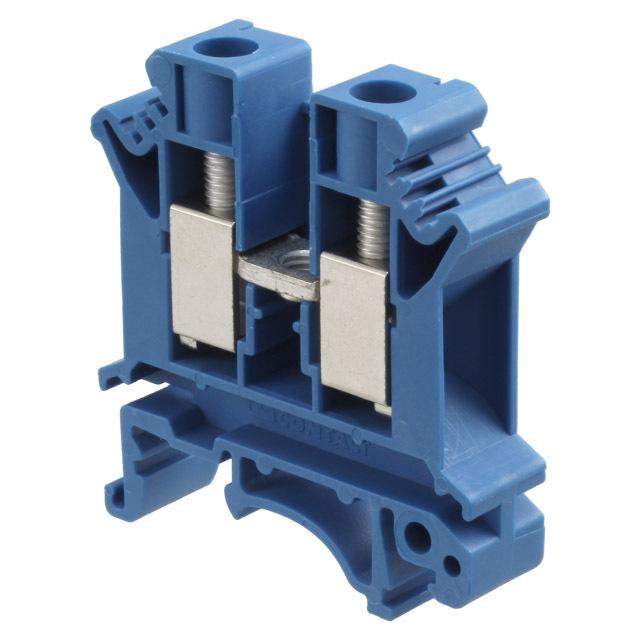

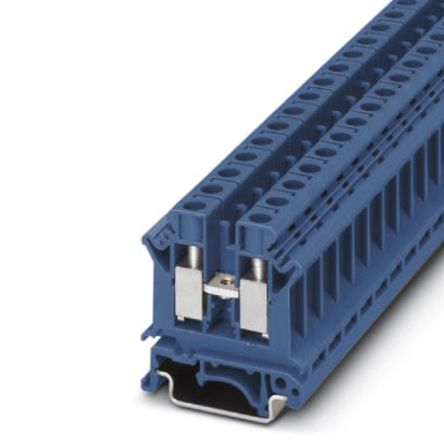

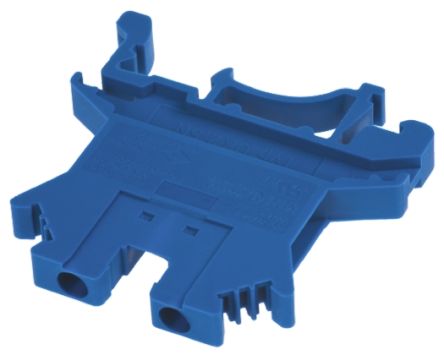

PHOENIX CONTACT  3005086  接线端子, DIN导轨安装, 2 路, 800 V, 57 A, 20 AWG, 6 AWG, 16 mm²

通用端子

通用端子，采用聚酰胺模制，适合 G 和顶帽导轨。

螺钉导线，使用闭合螺丝刀轴进行保护。 可提供 2.5mm² 到 35mm² 导线尺寸。 该系列由灰色（相位）、蓝色（中性）和黄色/绿色（接地）端子组成。 也可提供 10 路插入（跳接）桥接，与 35mm 导轨端支架一样。

**各个端子和补充附件**

**认证类别：II 2 GD EEx e II 证书 编号 KEMA 98ATEX1651U**

欧时:
3005086 - Phoenix Contact 菲尼克斯 UK 系列 蓝色 馈通端子块

得捷:
CONN TERM BLK FEED THRU 6-24 AWG

贸泽:
DIN导轨式接线端子 UK 10 N BU 10.2mm FEEDTHRU GRAY

e络盟:
接线端子, DIN导轨安装, 2 路, 800 V, 57 A, 20 AWG, 6 AWG, 16 mm²

艾睿:
Joining multiple circuits is easy with this universal terminal blocks 3005086 PCB terminal block from Phoenix Contact. This F connector has 2 F contacts. It has a maximum voltage rating of 800 V. It has a female type gender. This is a 2-row connector. 3005086 is housed in polyamide. This device has a maximum current rating of 76 A. It uses the screw termination method. Its wire is 6-20 AWG. This product is 42.5 mm long, 54.5 mm tall and 10.2 mm deep.

Allied Electronics:
Conn; Term Blk; Feed Thru; Screw; 2; 0.5-16 sq.mm; 20-6 AWG; 10.2 mm W; Blue

Verical:
Conn Feed-Through Terminal Block F 2 POS Screw T DIN Rail 57A

Newark:
# PHOENIX CONTACT  3005086  DIN Rail Mount Terminal Block, 2 Positions, 20 AWG, 6 AWG, 16 mm², Screw, 57 A

MASTER:
Feed-through terminal block - nom. voltage: 800 V - nominal current: 57 A - connection method: Screw connection - number of connections: 2 - cross section: 0.5 mm² - 16 mm² - AWG: 20 - 6 - width: 10.2 mm - color: blue - mounting type: NS 35/7,5 - NS 35/1

Online Components:
Conn Universal Terminal Blocks F 2 POS Screw T DIN Rail 76A

Electro Sonic:
Feed-through terminal block - nom. voltage: 800 V - nominal current: 57 A - connection method: Screw connection - number ...
