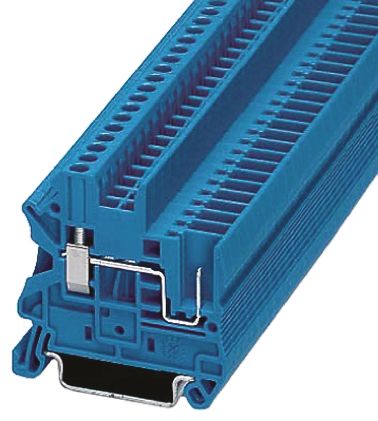

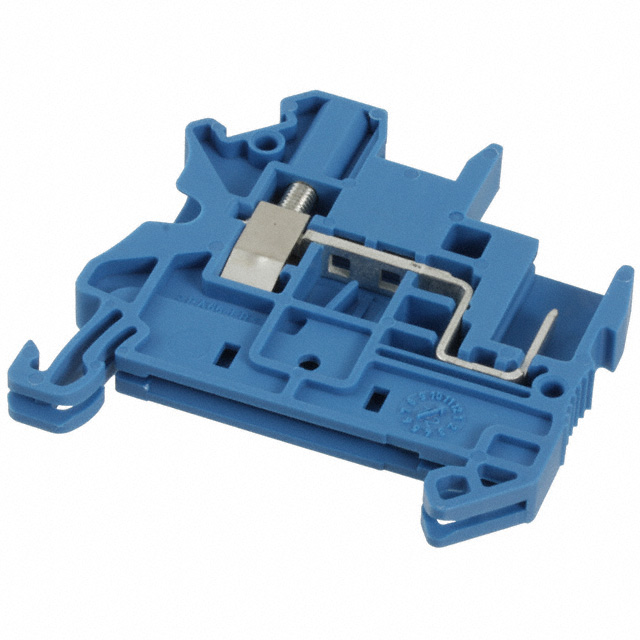

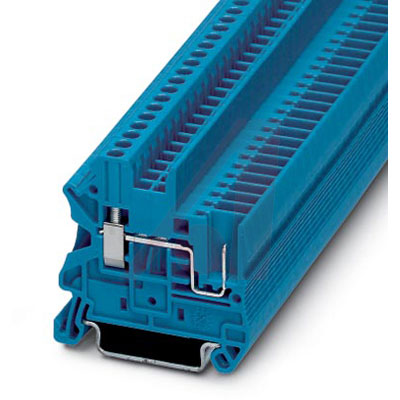

3045020

TB 系列### TB Series

TB 系列

得捷:
TERM BLK PLUG 2POS 5.2MM BLUE

欧时:
3045020 - Phoenix Contact 菲尼克斯 UT 系列 蓝色 馈通端子块

贸泽:
DIN导轨式接线端子 UT 2.5/1P BU PLUGABLE TERM BLOCK

艾睿:
Never worry about wires becoming undone by implementing this feed-through terminal block 3045020 PCB terminal block developed by Phoenix Contact. This F connector has 2 F contacts. It has a straight body orientation. This is a 2-row connector. It has a maximum voltage rating of 500 V. It has a female type gender. This device has a maximum current rating of 24 A. 3045020 is housed in polyamide. This product is 47.6 mm long, 55 mm tall and 5.2 mm deep. Its wire is 12-26 AWG. It uses the screw termination method.

Allied Electronics:
Conn; Term Blk; Screw; Pluggable; 2; 26-12 AWG; Blue; 20 A; 300 V

Verical:
Conn Feed-Through Terminal Block F 2 POS Screw ST T DIN Rail 24A

MASTER:
Feed-through terminal block - nom. voltage: 500 V - nominal current: 24 A - connection method: Screw/plug-in connection - number of connections: 2 - cross section: 0.14 mm² - 4 mm² - AWG: 26 - 12 - width: 5.2 mm - color: blue - mounting type: NS 35/7,5 -

Online Components:
Conn Feed-Through Terminal Block F 2 POS Screw ST T DIN Rail 24A

Electro Sonic:
Feed-through terminal block - nom. voltage: 500 V - nominal current: 24 A - connection method: Screw/plug-in connection - number ...
