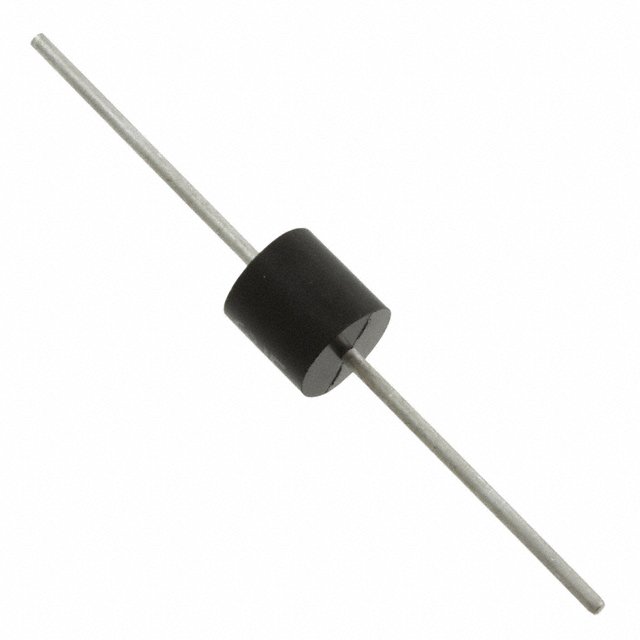

30KPA28A

瞬态电压抑制二极管 Transient Voltage Suppression Diodes

Description

The 30KPA Series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

Applications

  TVS devices are ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits used in telecom, computer, industrial and consumer electronic applications.

得捷:
TVS DIODE 28VWM 50VC P600

立创商城:
Vrwm:28V 30kW

贸泽:
ESD 抑制器/TVS 二极管 TVS Hi Power Diode 30KPA Axial

艾睿:
This 30KPA28A TVS diode developed by Littelfuse can help protect your expensive equipment and electronics. Its peak pulse power dissipation is 30000 W. Its maximum leakage current is 5000 μA. Its test current is 50 mA. This device&s;s maximum clamping voltage is 50 V and minimum breakdown voltage is 31.28 V. This TVS diode has an operating temperature range of -55 °C to 175 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery.

Chip1Stop:
Diode TVS Single Uni-Dir 28V 30KW 2-Pin Case P-600 T/R

TME:
Diode: transil; 30kW; 32.8V; 606A; unidirectional; ±5%; P600

Verical:
TVS Diode Single Uni-Dir 28V 30KW 2-Pin Case P-600 T/R
