瞬态电压抑制二极管 Transient Voltage Suppression Diodes
Description
The 30KPA Series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
Applications
TVS devices are ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits used in telecom, computer, industrial and consumer electronic applications.
得捷:
TVS DIODE 28VWM 50VC P600
贸泽:
ESD 抑制器/TVS 二极管 TVS Hi Power Diode 30KPA Axial
Chip1Stop:
Diode TVS Single Bi-Dir 28V 30KW 2-Pin Case P-600 T/R
Verical:
TVS Diode Single Bi-Dir 28V 30KW 2-Pin Case P-600 T/R
工作电压 28 V
击穿电压 31.28 V
电路数 1
耗散功率 30 kW
钳位电压 50 V
测试电流 50 mA
脉冲峰值功率 30000 W
最小反向击穿电压 31.28 V
击穿电压 31.28 V
工作温度Max 175 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 175℃
安装方式 Through Hole
引脚数 2

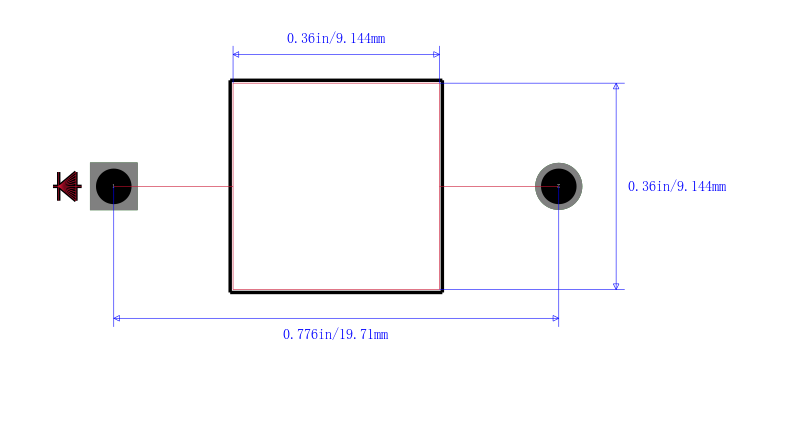

封装 P-600
长度 9.1 mm
封装 P-600
工作温度 -55℃ ~ 175℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
