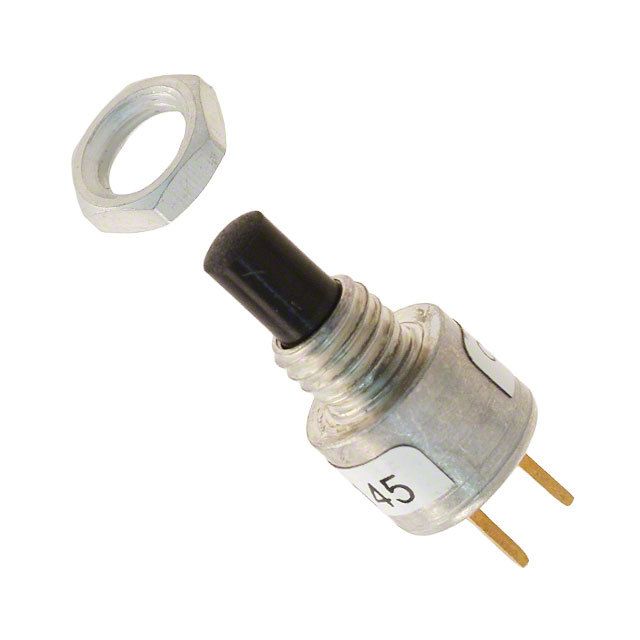

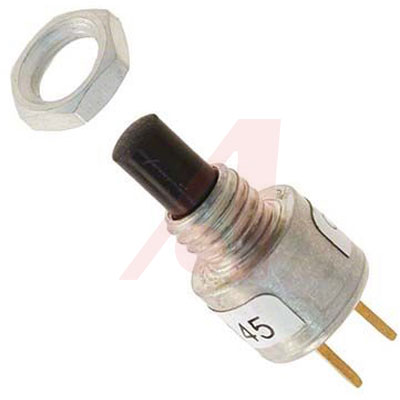

39-401 BLK

按钮开关 PushBtn Switch N.O. Black Btn

按钮 SPST-NO 标准 面板安装，后部

立创商城:
39-401 BLK

得捷:
SWITCH PUSH SPST-NO 0.15A 28V

贸泽:
按钮开关 PushBtn Switch N.O. Black Btn

艾睿:
This classic 39-401 BLK push button switch from Grayhill will do exactly what you need it to do by turning your circuit on and off. It has a SPST configuration. This device has a maximum current rating of 0.15 A @ 28VDC. This push switch has a minimum operating temperature of -40 °C and a maximum of 85 °C. The 39-401 BLK push switch has a PC pin termination style. The maximum DC voltage rating is 28 VDC. This product is 6.35 mm long, 13.08 mm tall and 6.35 mm deep.

Allied Electronics:
Switch, Pushbtn; SPST; NO; Mom; 0.15A, 28VDC; with nut; PC term; Black Button

安富利:
Switch Push Button N.O. SPST Round Plunger 0.15A 28VDC Momentary Contact PC Pins Panel Mount/Through Hole

Chip1Stop:
Switch Push Button N.O. SPST Round Plunger 0.15A 28VDC Momentary Contact PC Pins Panel Mount/Through Hole

Verical:
Switch Push Button N.O. SPST Round Plunger 0.15A 28VDC Momentary Contact PC Pins Panel Mount/Through Hole

Newark:
# GRAYHILL  39-401 BLK  Pushbutton Switch,STRAIGHT,SPST,OFF-ON,PC TAIL W/RETNN Terminal,PCB Hole Count:4
