HONEYWELL 311SM4-T 微动开关

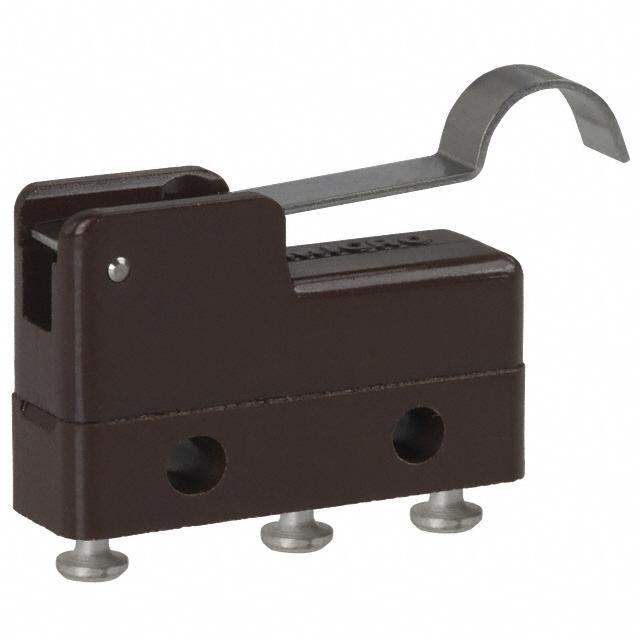

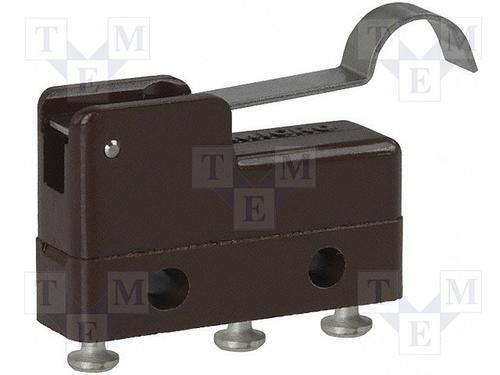

The is a MICRO SWITCH™ SM series sub-miniature Basic Switch with simulated roller lever actuator style and solder terminal. Suitable for simple or precision On/Off application needs. The MICRO SWITCH™ SM series switch is slightly larger than the MICRO SWITCH™ SX series switches. This switch combines small size and lightweight with ample electrical capacity, precision operation and long life.
- .
- Long operating life
- .
- Elongated mounting hole for easier, more accurate mounting
- .
- Silver contact
- .
- General purpose phenolic housing
额定电压DC 30 V
接触器类型 Roller Lever
额定电压AC 250 V
额定电流 5 A
触点类型 SPDT
针脚数 2
额定电流Max 5 A
工作温度Max 85 ℃
工作温度Min -54 ℃
额定电压 250 VAC
安装方式 Chassis
封装 Phenolic
长度 24.05 mm
宽度 6.4 mm
高度 14.5 mm
封装 Phenolic
触点材质 Silver
工作温度 -54℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
制造应用 Avionics, Communications & Networking, 工业, Industrial, 医用, Medical, 通信与网络, HVAC, Consumer Electronics, 计算机和计算机周边, Computers & Computer Peripherals, 航空电子, 消费电子产品
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
ECCN代码 EAR99
HTS代码 8536509055
