38BC-4-H-3-S

38BM 系列 微型 瞬时 单刀双掷 对接式触点 表面贴装 按键开关

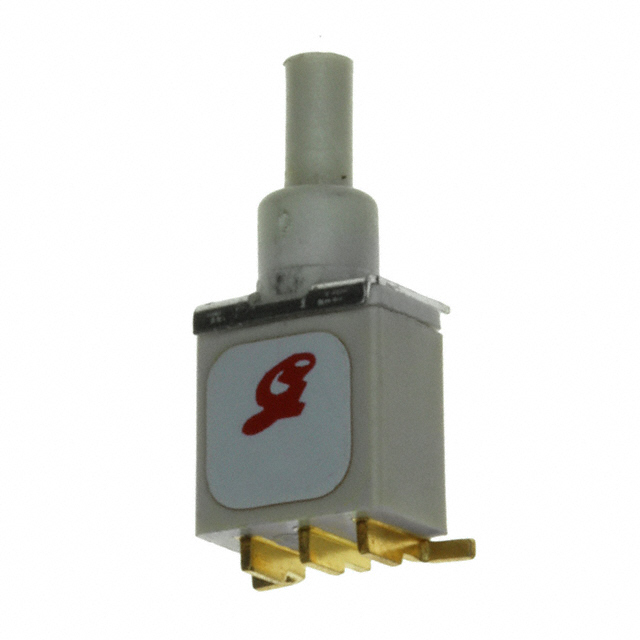

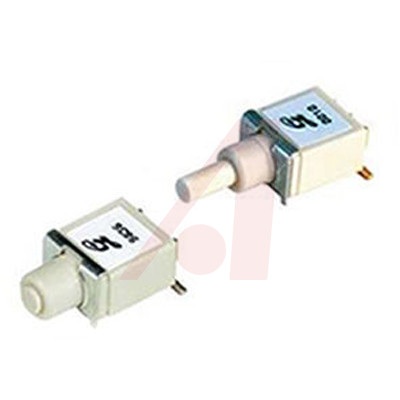

**38BM/BC Series Butt Contact Pushbutton Switches**

The 38BM/BC series is a horizontal, sub-minature pushbutton switch designed for horizontal surface mounting. They have momentary contacts and users can select either SPST 38BM or SPDT 38BC options. They have an industry standard layout design making them suitable for “drop-in" replacements. They also have a life cycle of 80,000 make and break cycles at full load making them cost effective and reducing maintenance.

立创商城:
38BC-4-H-3-S

得捷:
SWITCH PUSH SPDT 0.4VA 20V

贸泽:
Pushbutton Switches PushBtn Switch SPDT .215in plunger

艾睿:
Have complete control of the state of your design by implementing this 38BC-4-H-3-S push button switch from Grayhill. It has a SPDT configuration. This push switch has a minimum operating temperature of -30 °C and a maximum of 85 °C. The 38BC-4-H-3-S push switch has a gull wing termination style. The maximum AC voltage rating is 20 VAC and the maximum DC voltage rating is 20 VDC. This product is 6.36 mm tall.

Allied Electronics:
Switch, Pushbutton, SPDT, N.O, Mom., 20VAC, 20VDC, Gold Contact, .215 Plunger

Chip1Stop:
Switch Push Button N.O. SPDT Round Plunger 20VAC 20VDC 0.4VA Momentary Contact Gull Wing SMD T/R

Newark:
# GRAYHILL  38BC-4-H-3-S  PUSHBUTTON SWITCH

MASTER:
Switch Push Button N.O. SPDT Round Plunger 20VAC 20VDC 0.4VA Momentary Contact Gull Wing SMD T/R

Electro Sonic:
Switch Push Button N.O. SPDT Round Plunger 20VAC 20VDC 0.4VA Momentary Contact Gull Wing SMD T/R
