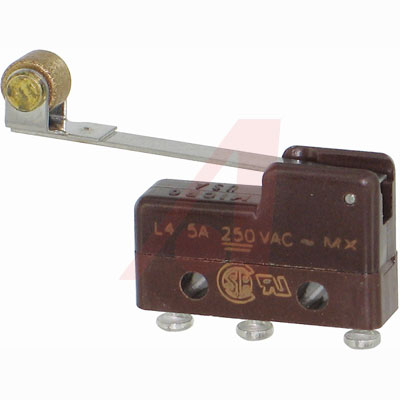

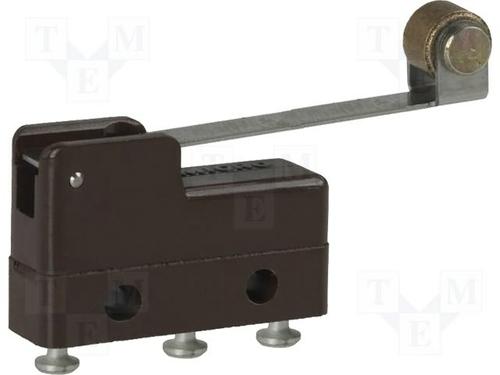

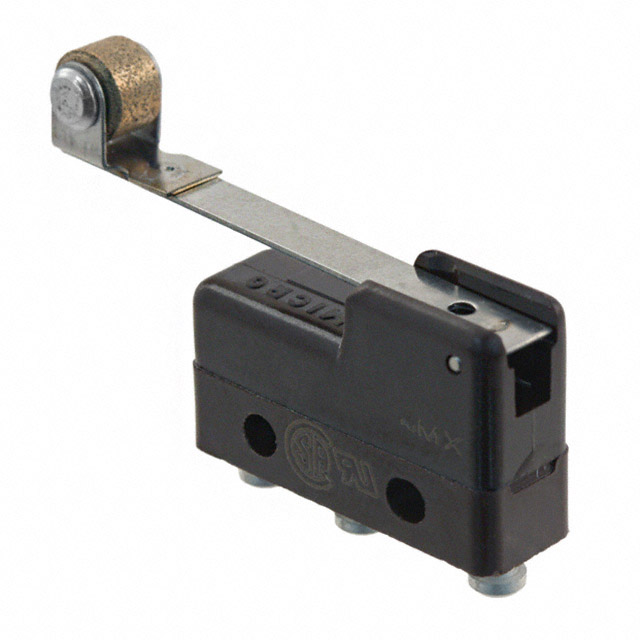

311SM7-T

HONEYWELL  311SM7-T  微动开关

** Micro Switch™ - SM Series Subminiature Switch**

The Honeywell series of sub miniature switches have been designed for simple and precision on/off application needs. The micro switch combines small size and light weight with precision operation, ample electrical capacity and long operating life.

贸泽:
基本/快动开关 Snap Action Roller 5A 0.31N Thru-Hole

e络盟:
微动开关

艾睿:
Only this 311SM7-T snap-action switch from Honeywell can open or close your circuit at the fastest speed. This device has a maximum current rating of 5. This snap action switch has a minimum operating temperature of -54 °C and a maximum of 85 °C. The 311SM7-T snap action switch has a turret solder termination style. This product is 30.65 mm long, 16.9 mm tall and 6.4 mm deep.

Allied Electronics:
Subminiature Switch; Basic; SPDT; 5 Amps; Roller Lever; Solder Lug

Jameco:
Snap Action Switch N.O.-N.C. Roller Lever Quick Connect Solder 5 Amp 0.31n Screw Mount

Chip1Stop:
Switch Snap Action N.O./N.C. Roller Lever Quick Connect/Solder 5A 0.31N Screw Mount

TME:
Microswitch; with lever with roller; SPDT; 5A/250VAC; ON-ON

Verical:
Switch Snap Action N.O./N.C. SPDT Roller Lever 5A 0.31N Screw Mount Turret Solder

Newark:
# HONEYWELL  311SM7-T  Microswitch, SM Series, SPDT, Solder, 5 A, 250 VAC, 30 VDC

MASTER:
MICRO SWITCH™ Subminiature Basic Switches: SM Series, Single Pole Double Throw SPDT, 5 A 250 Vac, 0,28 N [1.0 oz] Maximum Operating Force, 13,6 mm [0.54 in] Integral Roller Lever Actuator, Single Turret Solder Termination, 9,5 mm [0.38 in] Mounting Cent

Online Components:
MICRO SWITCH™ Subminiature Basic Switches: SM Series, Single Pole Double Throw SPDT, 5 A 250 Vac, 0,28 N [1.0 oz] ...

Electro Sonic:
MICRO SWITCH™ Subminiature Basic Switches: SM Series, Single Pole Double Throw SPDT, 5 A 250 Vac, 0,28 N [1.0 oz] ...

Win Source:
SWITCH SNAP ACTION SPDT 5A 250V / Switch SPDT Chassis Mount
