3455RC 01000224

3455RC 01000224图片1

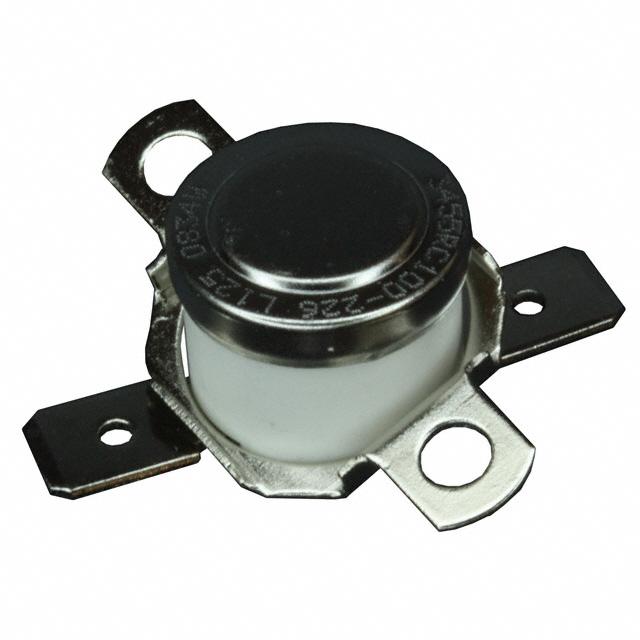

3455RC 01000224图片2

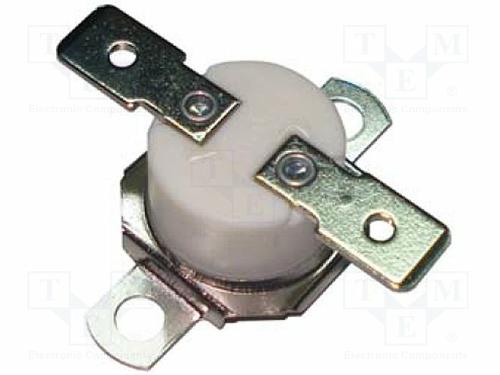

3455RC 01000224图片3

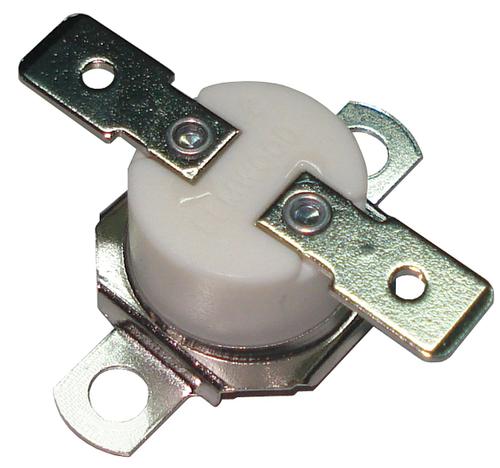

3455RC 01000224图片4
3455RC 01000224图片5

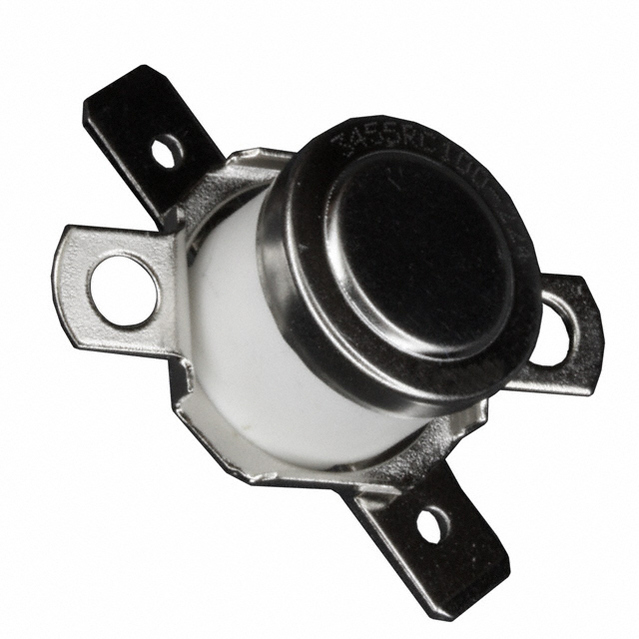

3455RC 01000224图片6
3455RC 01000224图片7
3455RC 01000224图片8
3455RC 01000224概述

恒温器 0 C to + 260 C Temperature Sensors

恒温器 105°F(41°C) SPST-NC 圆柱形,带安装法兰 快速连接


得捷:
THERMOSTAT 41DEG C SPST-NC CYL


贸泽:
恒温器 0 C to + 260 C Temperature Sensors


艾睿:
This 3455RC 01000224 thermostat by Honeywell is perfect for systems which require the user to change temperature. This device has a maximum current rating of 10 A. This part has a temperature range of 0 °C to 260 °C. The maximum AC voltage rating is 240 VAC.


Allied Electronics:
Commercial Thermal


TME:
Sensor: thermostat; Output conf: NC; Topen:41°C; Tclos:24°C; 10A


Verical:
Redi Temp Ceramic Thermostat Automatic Reset Open on Rise 2-Pin


Powell:
Sensors, Thermal , Thermostats


DeviceMart:
THERMOSTAT CERAMIC 40.6DEG C NC


3455RC 01000224中文资料参数规格
技术参数

额定电流Max 15 A

工作温度Max 260 ℃

工作温度Min 0 ℃

接触电阻Max 50 mΩ

封装参数

安装方式 Screw

引脚数 2

封装 Cylinder with Mounting Flange

外形尺寸

封装 Cylinder with Mounting Flange

物理参数

工作温度 0℃ ~ 260℃

外壳材质 Ceramic

其他

产品生命周期 Active

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

在线购买3455RC 01000224
型号: 3455RC 01000224
描述:恒温器 0 C to + 260 C Temperature Sensors
