3455RC 01000251

3455RC 01000251图片1

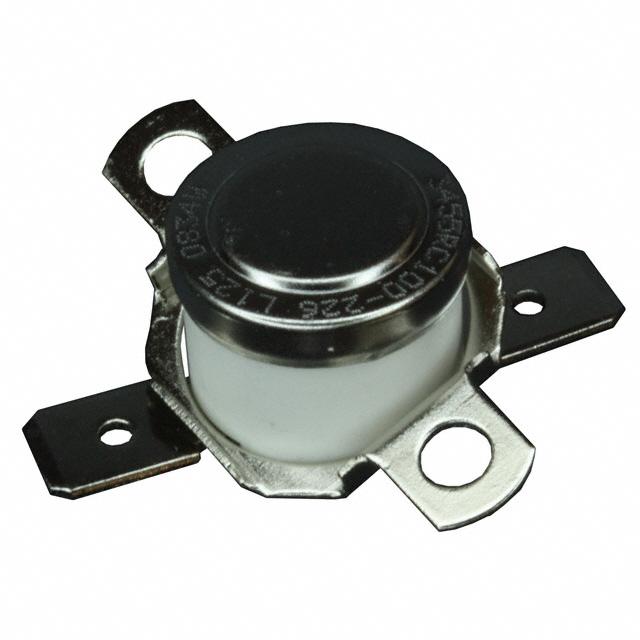

3455RC 01000251图片2

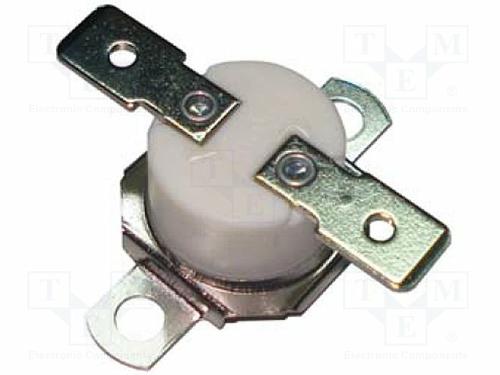

3455RC 01000251图片3

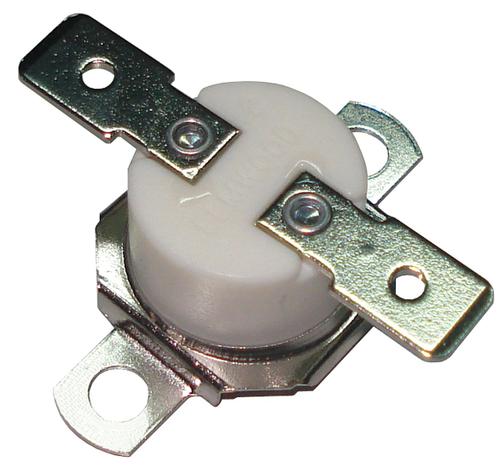

3455RC 01000251图片4

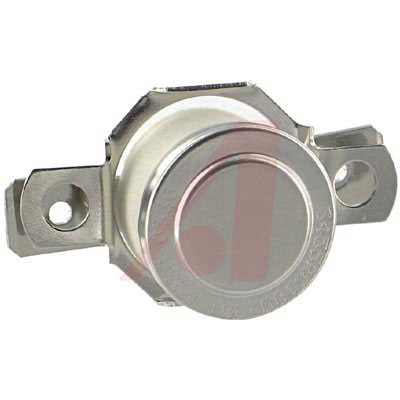

3455RC 01000251图片5
3455RC 01000251图片6
3455RC 01000251图片7
3455RC 01000251概述

Sensor: thermostat; Output conf: NO; Topen:93℃; Tclos:110℃; 10A

恒温器 230°F(110°C) SPST-NO 圆柱形,带安装法兰 快速连接


得捷:
THERMOSTAT 110DEG C SPST-NO CYL


艾睿:
Automatic Reset Thermostat


Allied Electronics:
Thermostat; Standard; 120 VAC; 15 A; SPST; -18 ° C; 288 ° C


Chip1Stop:
Automatic Reset Thermostat


TME:
Sensor: thermostat; Output conf: NO; Topen:93°C; Tclos:110°C; 10A


Verical:
Redi Temp Ceramic Thermostat Automatic Reset Close on Rise 2-Pin


Powell:
Sensors, Thermal , Thermostats


DeviceMart:
THERMOSTAT CERAMIC 110DEG C NO


3455RC 01000251中文资料参数规格
技术参数

额定电流 15 A

触点类型 SPST

额定电流Max 15 A

工作温度Max 260 ℃

工作温度Min 0 ℃

接触电阻Max 50 mΩ

电源电压 240 VAC

封装参数

安装方式 Chassis

引脚数 2

封装 Cylinder with Mounting Flange

外形尺寸

封装 Cylinder with Mounting Flange

物理参数

工作温度 0℃ ~ 260℃

外壳材质 Ceramic

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买3455RC 01000251
型号: 3455RC 01000251
描述:Sensor: thermostat; Output conf: NO; Topen:93℃; Tclos:110℃; 10A
