311SM6-H4

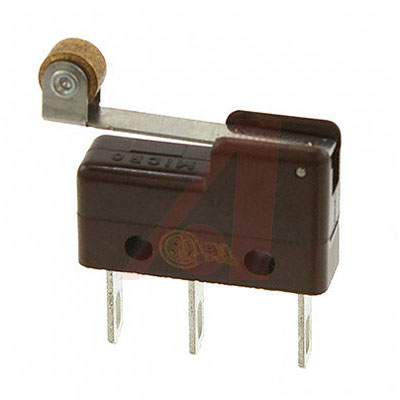

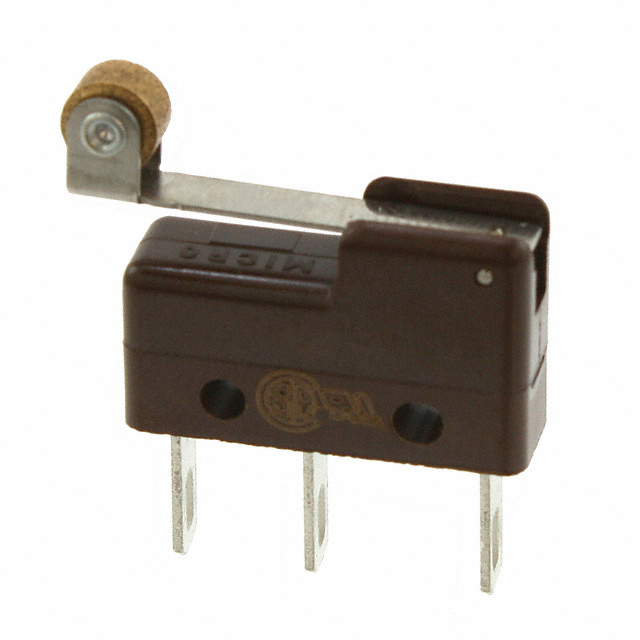

HONEYWELL  311SM6-H4  快动基本开关

** Micro Switch™ - SM Series Subminiature Switch**

The Honeywell series of sub miniature switches have been designed for simple and precision on/off application needs. The micro switch combines small size and light weight with precision operation, ample electrical capacity and long operating life.

贸泽:
Basic / Snap Action Switches SPDT 5A Roller Lever

e络盟:
快动基本开关

艾睿:
This 311SM6-H4 snap-action switch from Honeywell can be actuated with very little physical force. This device has a maximum current rating of 5. It has a SPDT configuration. The 311SM6-H4 snap action switch has a quick connect/solder lug termination style. The maximum AC voltage rating is 250CE/CSA/KEMA/UL VAC and the maximum DC voltage rating is 30 VDC. This product is 23.43 mm long, 27.15 mm tall and 6.35 mm deep.

Allied Electronics:
Basic Switch, SM Series, SPDT, 5A 250VAC, Roller Lever, QC Tabs

Chip1Stop:
Switch Snap Action N.O./N.C. SPDT Roller Lever Quick Connect/Solder Lug 5A 250VAC 30VDC 0.39N Screw Mount

Verical:
Switch Snap Action N.O./N.C. SPDT Roller Lever Quick Connect/Solder Lug 5A 250VAC 30VDC 0.39N Screw Mount

Newark:
# HONEYWELL  311SM6-H4  Microswitch, SM Series, SPDT, Quick Connect, 5 A, 250 VAC, 30 VDC

MASTER:
MICRO SWITCH™ Subminiature Basic Switches: SM Series, Single Pole Double Throw SPDT, 5 A 250 Vac, 0,39 N [1.4 oz] Maximum Operating Force, 6,38 mm [0.25 in] Integral Roller Lever Actuator, 2,8 mm x 0,51 mm [0.110 in x 0.020 in] Quick Connect Termination

Online Components:
Switch Snap Action N.O./N.C. SPDT Roller Lever Quick Connect/Solder Lug 5A 250VAC 30VDC 0.39N Screw Mount

Electro Sonic:
MICRO SWITCH™ Subminiature Basic Switches: SM Series, Single Pole Double Throw SPDT, 5 A 250 Vac, 0,39 N [1.4 oz] ...
