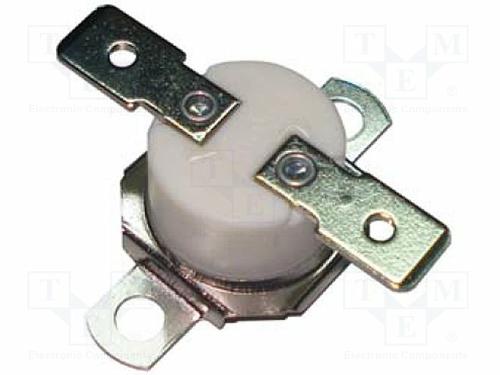

3455RC 01000248图片3

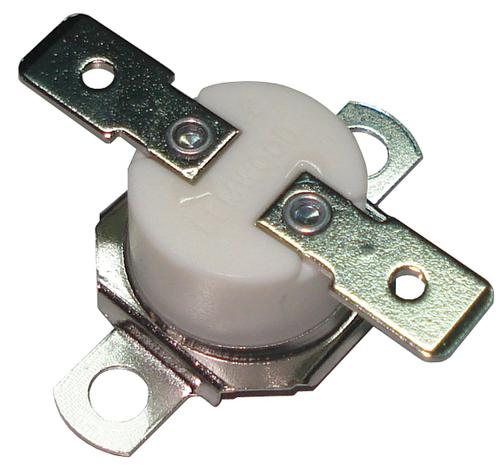

3455RC 01000248图片4
3455RC 01000248图片5
3455RC 01000248图片6
3455RC 01000248图片7

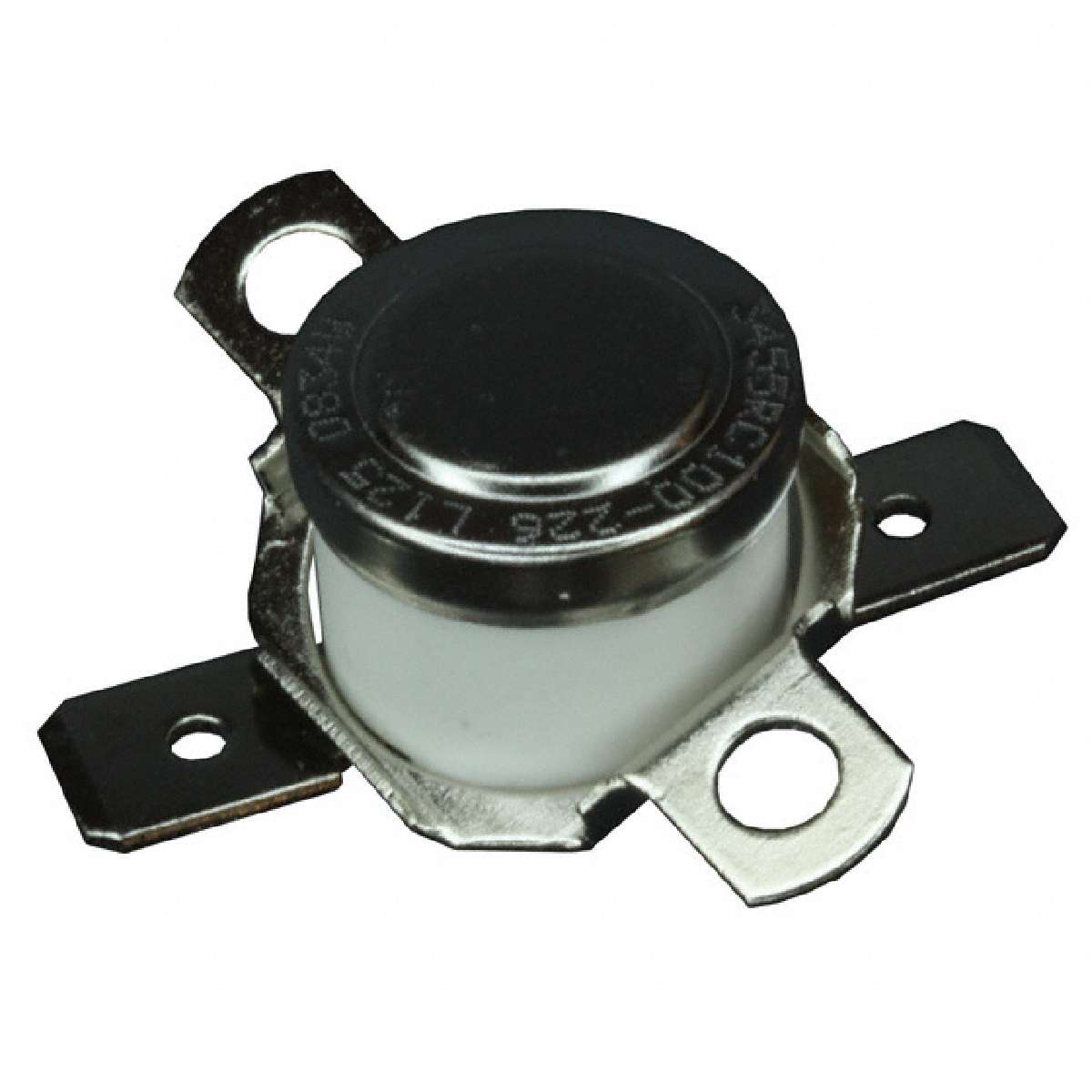

3455RC 01000248图片8
3455RC 01000248概述

Sensor: thermostat; Output conf: NO; Topen:60℃; Tclos:77℃; 10A

恒温器 170°F(77°C) SPST-NO 圆柱形,带安装法兰 快速连接


得捷:
THERMOSTAT 77DEG C SPST-NO CYL


艾睿:
Ceramic Automatic Reset Thermostat


Allied Electronics:
Commercial Thermal


TME:
Sensor: thermostat; Output conf: NO; Topen:60°C; Tclos:77°C; 10A


Newark:
# HONEYWELL  3455RC 01000248  Thermostat, Automatic Reset, 3455RC Series, 77 °C, Normally Closed, Flange Mount


Powell:
Sensors, Thermal , Thermostats


3455RC 01000248中文资料参数规格
技术参数

额定电流 15A, 10A

触点类型 SPST

额定电流Max 15 A

工作温度Max 260 ℃

工作温度Min 0 ℃

额定电压 120VAC, 240VAC

接触电阻Max 50 mΩ

封装参数

引脚数 2

封装 Cylinder with Mounting Flange

外形尺寸

封装 Cylinder with Mounting Flange

物理参数

工作温度 0℃ ~ 260℃

外壳材质 Ceramic

其他

产品生命周期 Active

包装方式 Tray

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买3455RC 01000248
型号: 3455RC 01000248
描述:Sensor: thermostat; Output conf: NO; Topen:60℃; Tclos:77℃; 10A
