压力传感器, TO-8, 1 psi, 模拟, 差值, 管装, 1.5 mA

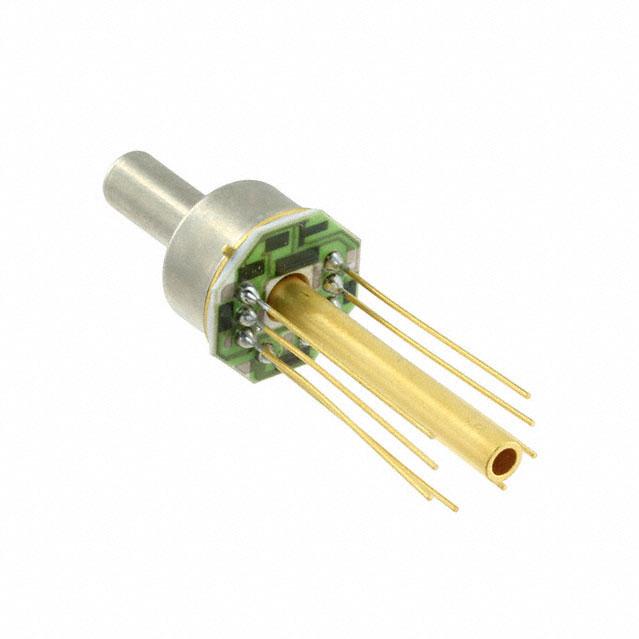

The 23 and 33 are temperature compensated, piezoresistive silicon pressure sensors packaged in a TO-8 configuration. It provides excellent performance and long-term stability. Gage and absolute pressure ranges from 0-2 to 0-250 psi are available. Integral temperature compensation is provided over a range of 0-50°C using laser-trimmed resistors. An additional laser-trimmed resistor is included to normalize pressure sensitivity variations by programming the gain of an external differential amplifier. This provides sensitivity interchangeability of ±1%. Features TO-8 Package 0ºC to 50ºC Compensated Temperature Range ±0.1% Non Linearity 1.0% Interchangeable Span provided by gain set resistor Solid State Reliability Application Medical Instruments Process Control Factory Automation Airspeed Measurement Handheld Calibrators
