3050A20

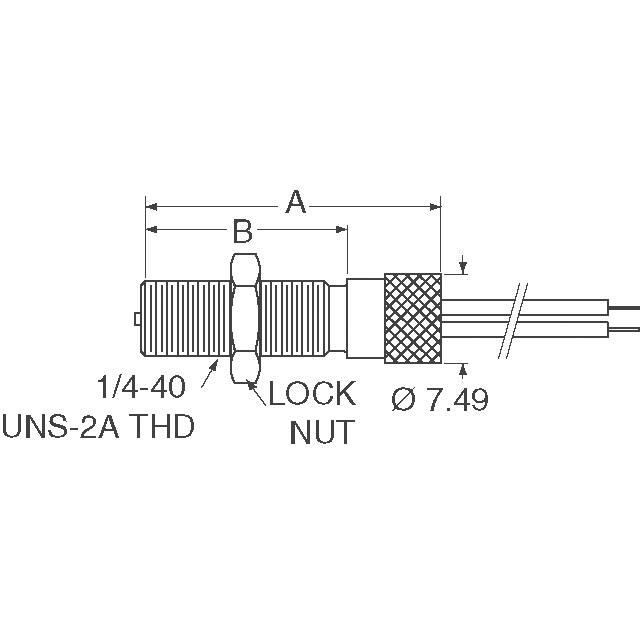

3050A20图片1
3050A20图片2
3050A20图片3
3050A20图片4
3050A20图片5
3050A20图片6
3050A20图片7
3050A20图片8
3050A20概述

磁场传感器

磁性 VRS(无源) 铁金属齿轮齿 正弦波 导线引线 不锈钢套管


得捷:
SENSOR VRS SINE WAVE WIRE LEADS


立创商城:
磁场传感器


艾睿:
General Purpose VRS Sensor Automotive 2-Pin


Chip1Stop:
General Purpose VRS Sensor 2-Pin


Verical:
General Purpose VRS Sensor Automotive 2-Pin


MASTER:
General Purpose VRS Sensor Automotive 2-Pin


Powell:
Sensors, Magnetic Position Sensors, Speed and Direction - Variable Reluctance Speed Sensors


Online Components:
General Purpose VRS Sensor 2-Pin


Electro Sonic:
General Purpose VRS Sensor Automotive 2-Pin


3050A20中文资料参数规格
技术参数

频率 60 kHz

输出电压 12 V

电感 16 mH

线圈电阻 190 Ω

工作温度Max 107 ℃

工作温度Min -40 ℃

封装参数

安装方式 Chassis

引脚数 2

封装 Barrel, Stainless Steel

外形尺寸

长度 59 mm

封装 Barrel, Stainless Steel

物理参数

重量 14 g

工作温度 -40℃ ~ 107℃

其他

产品生命周期 Active

符合标准

RoHS标准 Non-Compliant

含铅标准 Contains Lead

海关信息

HTS代码 8543704000

数据手册

在线购买3050A20
型号: 3050A20
描述:磁场传感器
