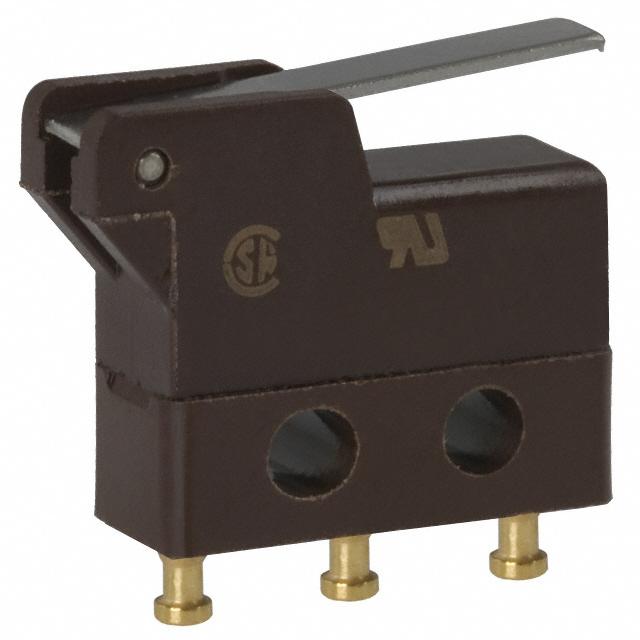

HONEYWELL 311SX1-T 微动开关, SX系列, SPDT, 焊接, 5 A, 250 VAC, 28 VDC
The is a single-pole double-throw SPDT sub-miniature Basic Switch with straight lever actuator and solder terminations. The MICRO SWITCH™ SX series sub-miniature basic switch comes with general purpose phenolic housing and silver-plated contact. It is used for simple or precision ON/OFF application needs. It is small, precision snap-action switch is ideal where savings in space and weight are important. Elongated mounting hole for easier, more accurate mounting.
- .
- Long operating life
- .
- -55 to 125°C Operating temperature range
额定电压DC 28 V
接触器类型 Straight Lever
额定电压AC 125 V
额定电流 5 A
触点类型 SPDT
针脚数 2
触点额定电流 5.00 A
额定电流Max 5 A
工作温度Max 121 ℃
工作温度Min -54 ℃
额定电压 250 VAC
安装方式 Chassis
封装 -
长度 3.43 mm
高度 13.6 mm
封装 -
触点材质 Silver
工作温度 -54℃ ~ 85℃
产品生命周期 Active
制造应用 Communications & Networking, Industrial, 医用, 传感与仪器, Sensing & Instrumentation, 通信与网络, Computers & Computer Peripherals, 测试与测量, Aerospace, Defence, Military, Test & Measurement, 时钟与计时, Medical, 工业, 国防, Clock & Timing, HVAC, 军用与航空, 国防, 军用与航空, Consumer Electronics, 计算机和计算机周边, 消费电子产品
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 Yes
ECCN代码 EAR99
HTS代码 8536509055
