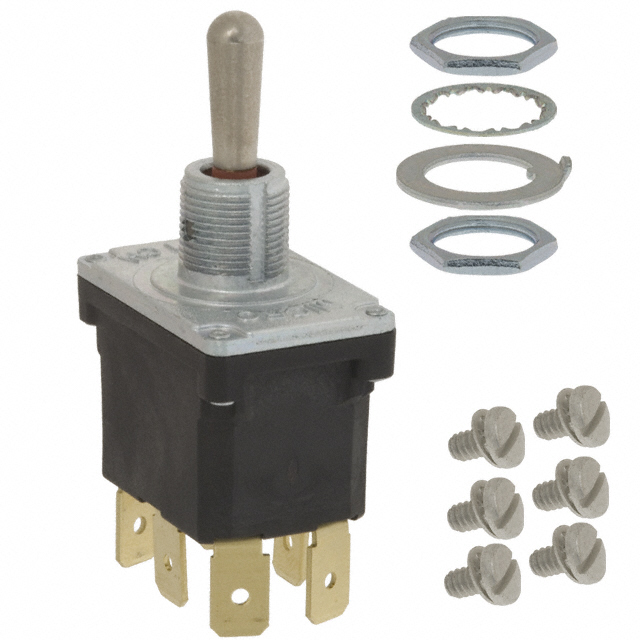

32NT91-1图片1
32NT91-1图片2
32NT91-1图片3
32NT91-1图片4
32NT91-1图片5
32NT91-1图片6
32NT91-1概述

HONEYWELL  32NT91-1  拨动开关

"s 61/62 NT Series toggle switches simplify installation and enhance panel appearance while providing a broad range of options for circuitry, sealing, size and style. These rugged, cost-effective switches were originally designed to eliminate the need for behind-panel hardware, to provide uniform panel height, and to provide a unique, universal cover seal, all while providing reliable performance.

NT Series toggle switches from Honeywell feature:

* A raised panel stand-off option for consistent panel height

* An Easy-Start bushing to ensure proper alignment

* A panel-to-cover O-ring seal for increased protection

* Quality at a competitive price

32NT91-1中文资料参数规格
技术参数

接触器类型 Standard

额定电压AC 125 V

额定电流 15 A

方向 Vertical

触点类型 DPDT

针脚数 3

额定电流Max 20A @28VDC

工作温度Max 71 ℃

工作温度Min -40 ℃

额定电压 115 VAC

封装参数

安装方式 Panel, Quick Connect

外形尺寸

长度 55.1 mm

高度 63.6 mm

物理参数

触点材质 Silver Alloy

工作温度 -40℃ ~ 71℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536509065

数据手册
