32NT391-7-C08概述

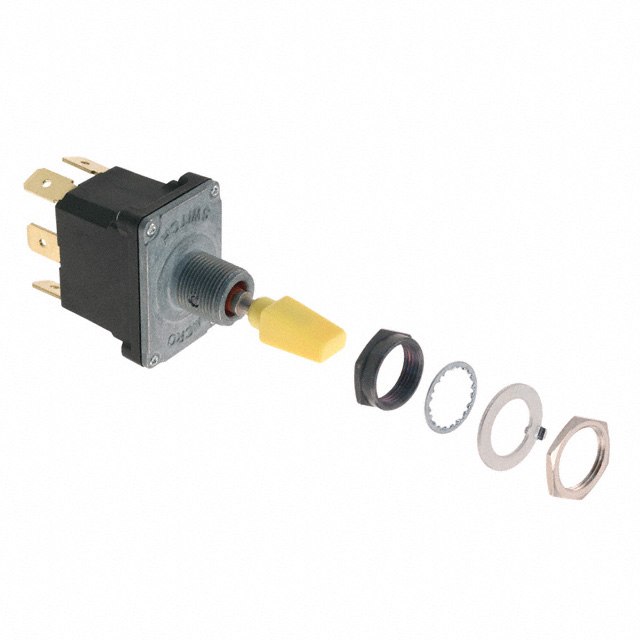

MICRO SWITCH™ Toggle Switches: NT Series, Flat Base Case, Single Pole Double Throw SPDT, 3Position Mom. On - Off - Mom. On, High Spring Force, Quick Connect Terminal, 22mm Yellow Plastic Tab Lever, 1 Black Standard Nut in Hardware Packet

"s NT Series toggle switches simplify installation and enhance panel appearance while providing a broad range of options for circuitry, sealing, size and style. These rugged, cost-effective switches were originally designed to eliminate the need for behind-panel hardware, to provide uniform panel height, and to provide a unique, universal cover seal, all while providing reliable performance.

NT Series toggle switches from Honeywell feature:

* A raised panel stand-off option for consistent panel height

* An Easy-Start bushing to ensure proper alignment

* A panel-to-cover O-ring seal for increased protection

* Quality at a competitive price

32NT391-7-C08中文资料参数规格
技术参数

排数 2

触点类型 DPDT

额定电流Max 10A @277VAC

额定功率Max 372.85 VA

额定电压AC Max 277 V

封装参数

安装方式 Panel, Screw-In

外形尺寸

长度 33.53 mm

高度 70.41 mm

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536509065

数据手册

在线购买32NT391-7-C08
型号: 32NT391-7-C08
描述:MICRO SWITCH™ Toggle Switches: NT Series, Flat Base Case, Single Pole Double Throw SPDT, 3Position Mom. On - Off - Mom. On, High Spring Force, Quick Connect Terminal, 22mm Yellow Plastic Tab Lever, 1 Black Standard Nut in Hardware Packet
