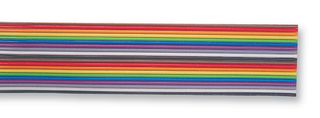

Ribbon Cable, Color Coded Thermal Bonded Flat, Multi-colored, 16Conductor, 28AWG, 0.09mm²
0.050" Centers UL20029. 28 AWG, 7/36 stranded tinned copper conductors, color coded PVC insulation, colors repeat every 10 conductors.- .
- * Rated:** 105°C, 300 volts.
得捷:
CBL RIBN 16COND 0.05 MULT 100"
艾睿:
Flat Cable 16Conductors 1.27mm 28AWG 30.48m Tinned Copper 300VAC Spool
Allied Electronics:
Cable; Flat Ribbon; 16 Conductor; 28AWG; Stranded; PVC; 300V; Color Coded
Newark:
Ribbon Cable, Color Coded Thermal Bonded Flat, Multi-colored, 16 Conductor, 28 AWG, 0.09 mm²
线规 28 AWG
额定电压DC 300 V
屏蔽 No
芯数 16
工作温度Max 105 ℃
工作温度Min -20 ℃
额定电压Max 300 VAC
额定电压 300 V
长度 100 ft
高度 0.88 mm
工作温度 -20℃ ~ 105℃
导体材质 Tinned Copper
外壳材质 PVC
产品生命周期 Active
包装方式 Coil
制造应用 Communications & Networking, Communications & Networking, Automation & Process Control, Automation & Process Control
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2013/06/20
