3896/100

3M 3896/100 RIBBON CABLE, 100WAY, 84M, 30AWG, 50V

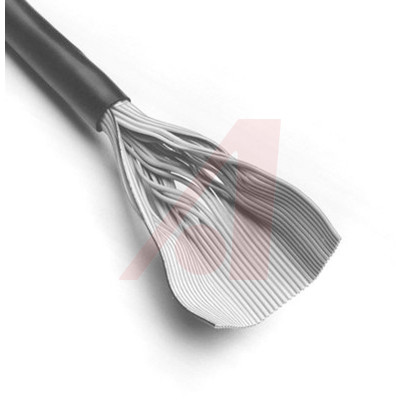

The 3896 series unshielded round-jacketed Flat Cable with tinned stranded copper conductor, black PVC jacket and a polyester film inner wrap. The 30AWG wire on 0.025-inch centres permits mass termination. It is recommended for use with ™ tripolarized wire-mount socket 82XXX-600X, 0.05 x 0.1-inch, 3M™ mini-D ribbon MDR wiremount plug 101XX-8X00EE, 0.05-inch and 3M™ Pak 50 IDC sockets P25E-XXXs-XXX.

.

Round construction permits easier routing

.

Continuous split/bond allows for mass termination on 2.4" centres approximate

.

Close spacing permits higher signal density

.

PVC insulation provides excellent flexibility
