3539/26概述

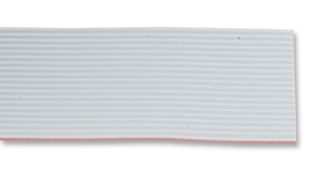

3M  3539/26  带状电缆, 圆形电缆扁平中度软性, 灰色, 26 芯, 28 AWG

The 3539 series unshielded medium flex Life Cable with tinned stranded copper conductor and a grey PVC insulator. The 28AWG wire on 0.05-inch centres permits mass termination to a broad line of IDC connectors.

.
Flex life of 10 million cycles at 1-3/4" diameter
.
19 Strands of tinned copper provide extended flex life for dynamic applications
.
Zippable for branching or discrete termination
.
106R Impedance
.
13.3pF/ft Capacitance
.
0.15µH/ft Inductance
.
72% Velocity of propagation
3539/26中文资料参数规格
技术参数

线规 28 AWG

额定电压DC 50.0 V

额定电压AC 300 V

芯数 26

工作温度Max 105 ℃

工作温度Min -20 ℃

额定电压Max 300 V

额定电压 50 V

封装参数

引脚间距 1.27 mm

外形尺寸

高度 0.89 mm

引脚间距 1.27 mm

电缆长度 30.48 m

物理参数

颜色 Gray

工作温度 -20℃ ~ 105℃

导体材质 Tinned Copper

外壳材质 PVC

符合标准

RoHS标准 RoHS Compliant

REACH SVHC标准 No SVHC

REACH SVHC版本 2014/06/16

海关信息

ECCN代码 EAR99
